1969592 Series

Catalog

(3-1969592-6) HSG,REC,FREE-HANGING,DUALROW,EP2.5

Part	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Note	Insulation Material	Number of Rows	Mounting Type	Contact Type	Color	Contact Termination	Fastening Type	Row Spacing	Row Spacing	Connector Type

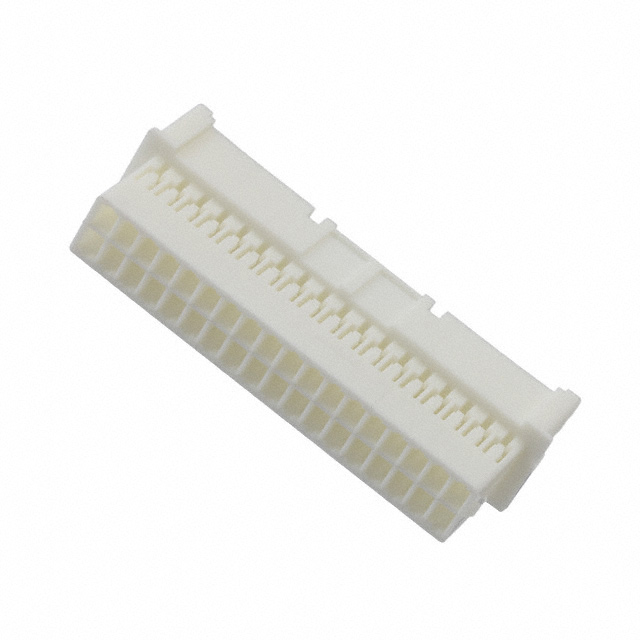

TE Connectivity Raychem Cable Protection 3-1969592-6	0.098 in	2.5 mm	105 ░C	-55 °C	36	Contacts Not Included	Nylon Polyamide (PA)	2	Free Hanging (In-Line)	Male Pin	White	Crimp	Latch Lock	0.098 in	2.5 mm	Receptacle

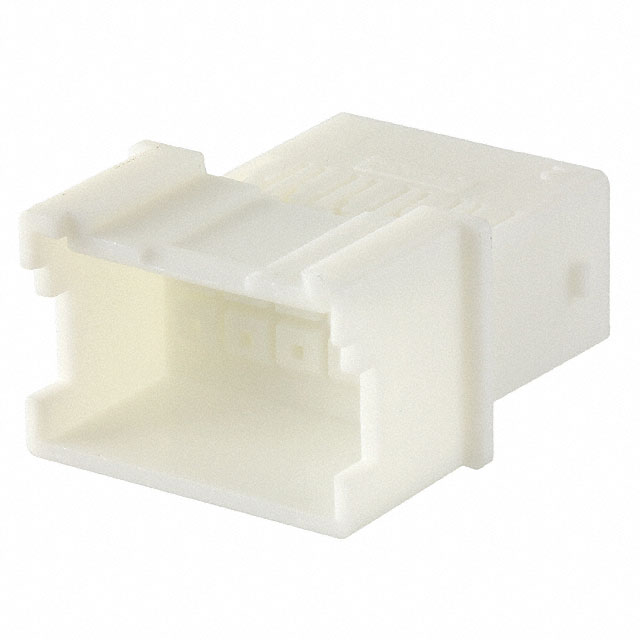

TE Connectivity Raychem Cable Protection 1-1969592-0	0.098 in	2.5 mm	105 ░C	-55 °C	10	Contacts Not Included	Nylon Polyamide (PA)	2	Free Hanging (In-Line)	Male Pin	White	Crimp	Latch Lock	0.098 in	2.5 mm	Receptacle

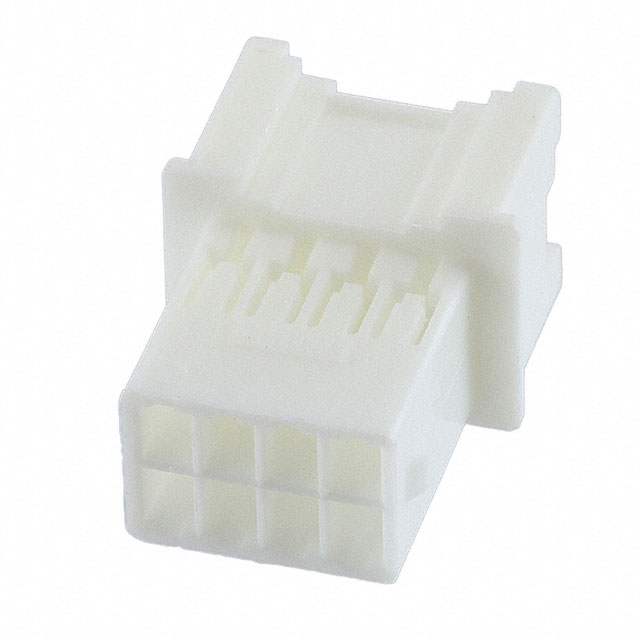

TE Connectivity Raychem Cable Protection 1969592-8	0.098 in	2.5 mm	105 ░C	-55 °C	8	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	2	Free Hanging (In-Line)	Male Pin	White	Crimp	Latch Lock	0.098 in	2.5 mm	Receptacle
TE Connectivity Raychem Cable Protection 3-1969592-4	0.098 in	2.5 mm	105 ░C	-55 °C	34	Contacts Not Included	Nylon Polyamide (PA)	2	Free Hanging (In-Line)	Male Pin	White	Crimp	Latch Lock	0.098 in	2.5 mm	Receptacle

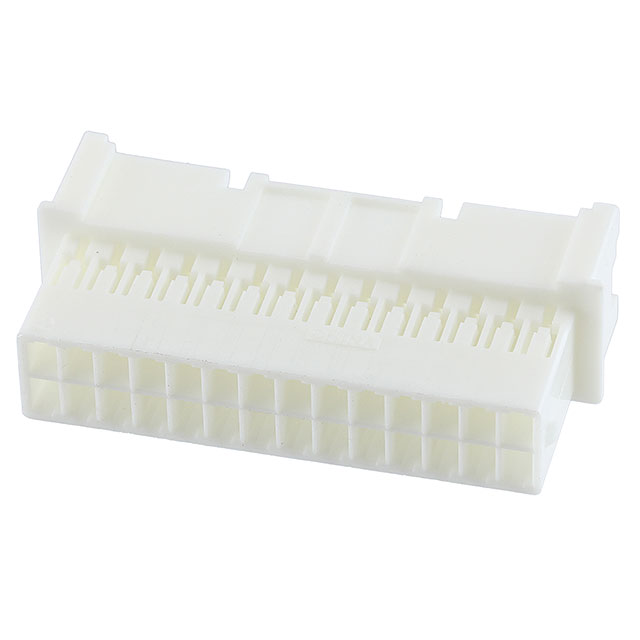

TE Connectivity Raychem Cable Protection 2-1969592-8	0.098 in	2.5 mm	105 ░C	-55 °C	28	Contacts Not Included	Nylon Polyamide (PA)	2	Free Hanging (In-Line)	Male Pin	White	Crimp	Latch Lock	0.098 in	2.5 mm	Receptacle
