17S Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 6.88"L X 4.88"W

Part	Weight	Weight	Design	Material Flammability Rating	Area (L x W)	Area (L x W)	Color	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Thickness	Material	Features	Container Type	Height [z]	Height [z]

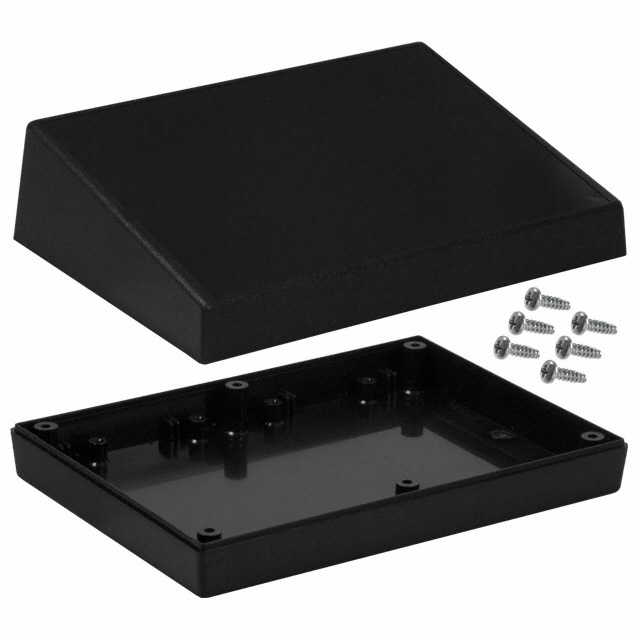

Serpac 17S,BK	0.43 lb	195.04 g	Split Sides and Slanted Top	UL94 HB	217 cm²	33.6 in²	Black	12 14 IP40 NEMA 4X	6.88 in	123.95 mm	174.75 mm	4.88 in	2.54 mm	0.1 in	ABS Plastic	PCB Supports	Box	63.25 mm	2.49 in
Serpac 17S,AL	0.43 lb	195.04 g	Split Sides and Slanted Top	UL94 HB	217 cm²	33.6 in²	Almond	12 14 IP40 NEMA 4X	6.88 in	123.95 mm	174.75 mm	4.88 in	2.54 mm	0.1 in	ABS Plastic	PCB Supports	Box	63.25 mm	2.49 in

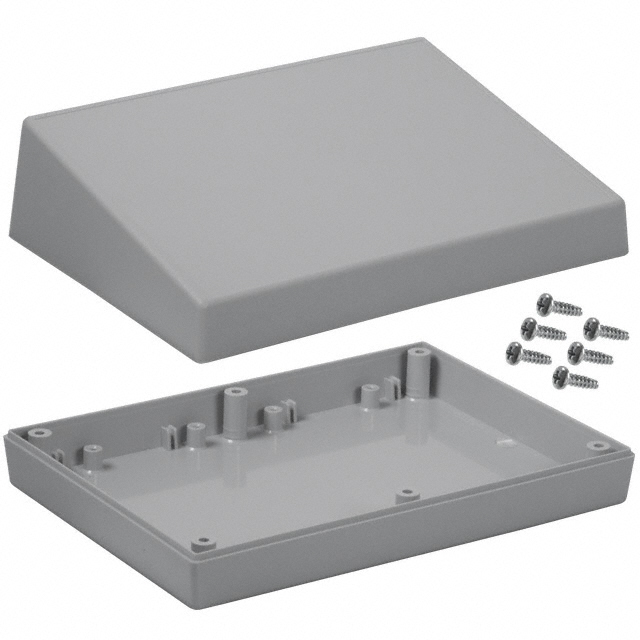

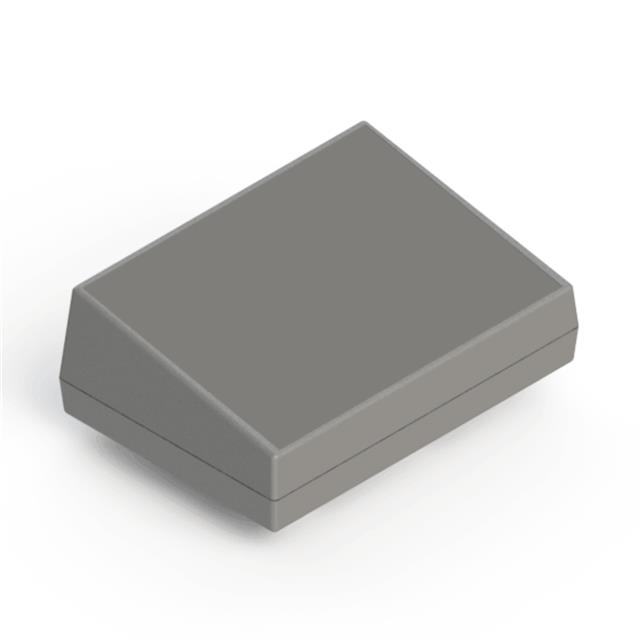

Serpac 17S,GY	0.43 lb	195.04 g	Split Sides and Slanted Top	UL94 HB	217 cm²	33.6 in²	Gray	12 14 IP40 NEMA 4X	6.88 in	123.95 mm	174.75 mm	4.88 in	2.54 mm	0.1 in	ABS Plastic	PCB Supports	Box	63.25 mm	2.49 in
