1571625 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Contact Rating @ Voltage	Mechanical Life	Switch Function	Operating Force	Circuit	Termination Style	Actuator Height off PCB, Vertical [z]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Illumination	Mounting Type	Actuator Orientation	Outline [y]	Outline [x]	Switch Travel	Actuator Material

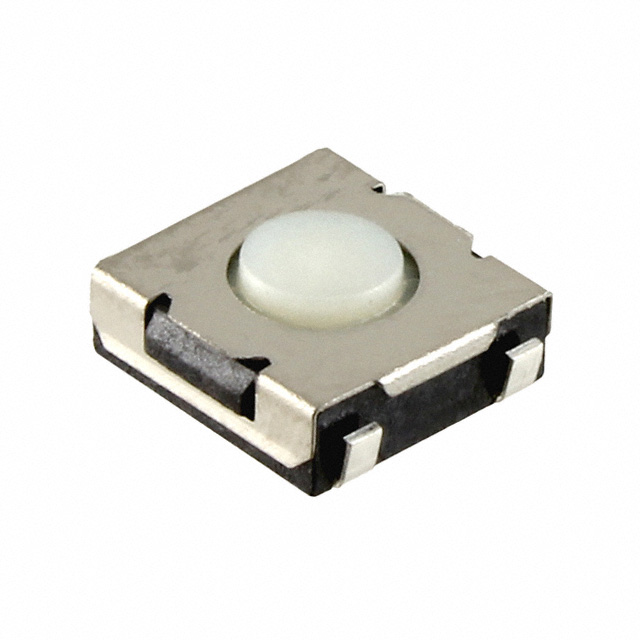

TE Connectivity Raychem Cable Protection 1571625-1	0.05 A 24 VDC	2000000 Cycles	Off-Mom	50 gf	SPST-NO	J Lead	2.5 mm	-35 °C	85 °C	Standard	Non-Illuminated	Surface Mount	Top Actuated	6.2 mm	6.2 mm	0.2 mm	Thermoplastic

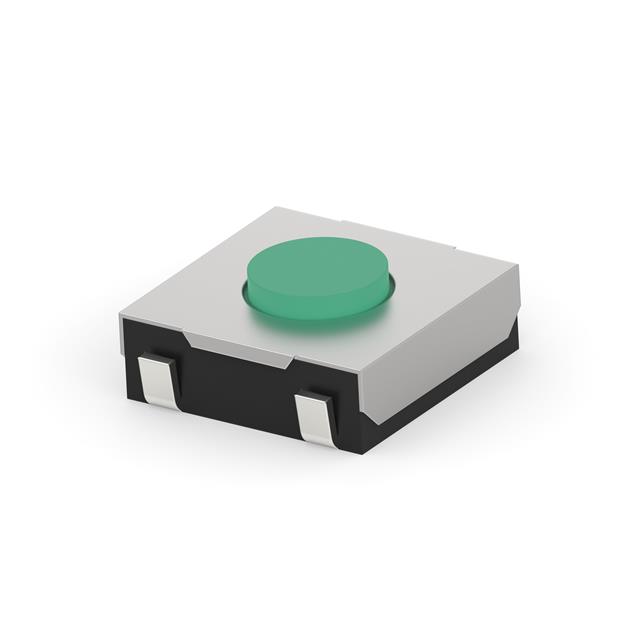

TE Connectivity Raychem Cable Protection 1571625-3	0.05 A 12 VDC	1000000 Cycles	Off-Mom	100 gf	SPST-NO	J Lead	2.5 mm	-35 °C	85 °C	Standard	Non-Illuminated	Surface Mount	Top Actuated	6.2 mm	6.2 mm	0.2 mm	Thermoplastic
