LEA150F Series

Catalog

AC/DC CONVERTER 24V 150W

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Isolation	Efficiency	Applications	Current - Output 1	Type	Features
Cosel USA, Inc. LEA150F-24-SNY	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	24 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	84 %	ITE (Commercial)	6.3 A	Enclosed	Adjustable Output Universal Input
Cosel USA, Inc. LEA150F-48-GY	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	48 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	87 %	ITE (Commercial)	3.2 A	Open Frame	Adjustable Output Universal Input
Cosel USA, Inc. LEA150F-15	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	15 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	83 %	ITE (Commercial)	10 A	Open Frame	Universal Input
Cosel USA, Inc. LEA150F-24-SNCH	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	24 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	84 %	ITE (Commercial)	6.3 A	Enclosed	Universal Input
Cosel USA, Inc. LEA150F-5-SNY	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	5 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	79 %	ITE (Commercial)	30 A	Enclosed	Adjustable Output Universal Input

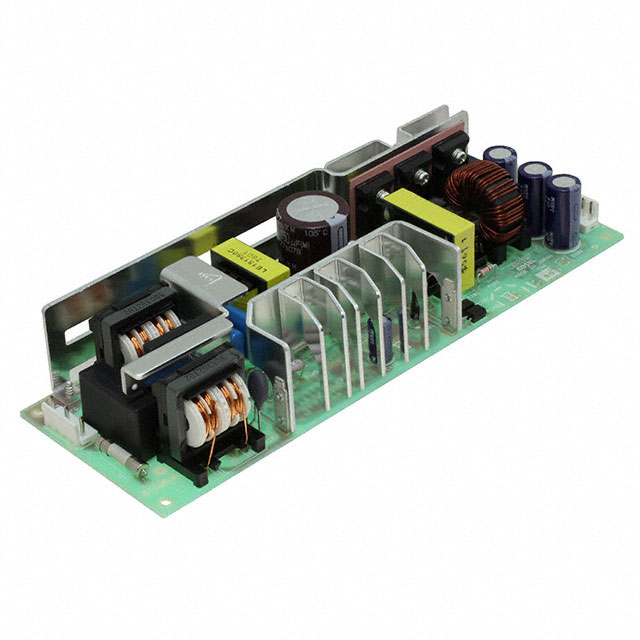

Cosel USA, Inc. LEA150F-15-SN	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	15 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	83 %	ITE (Commercial)	10 A	Enclosed	Universal Input
Cosel USA, Inc. LEA150F-3R3-SNY	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	3.3 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	74 %	ITE (Commercial)	30 A	Enclosed	Adjustable Output Universal Input

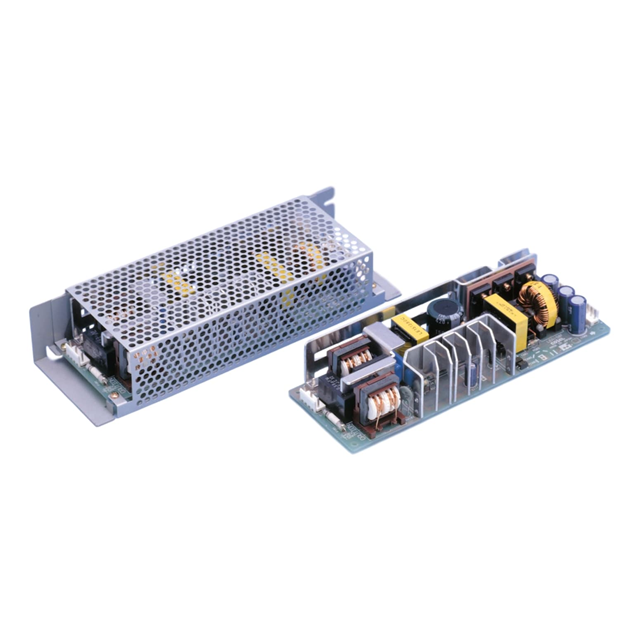

Cosel USA, Inc. LEA150F-48-SN	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	48 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	87 %	ITE (Commercial)	3.2 A	Enclosed	Universal Input
Cosel USA, Inc. LEA150F-15-SNY	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	15 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	83 %	ITE (Commercial)	10 A	Enclosed	Adjustable Output Universal Input

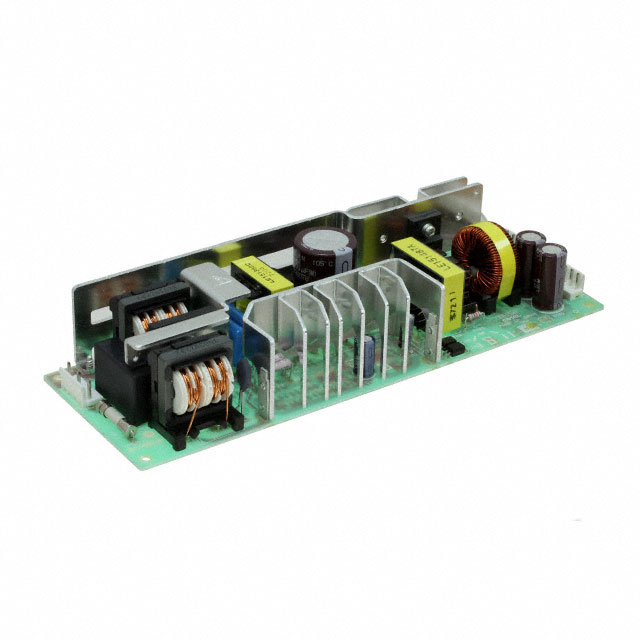

Cosel USA, Inc. LEA150F-48	Chassis Mount	75 mm	37 mm	8.74 in	2.95 in	1.46 in	222 mm	1	48 V	150 W	70 °C	-20 °C	CE cURus TUV	3000 V	87 %	ITE (Commercial)	3.2 A	Open Frame	Universal Input
