3260 Series

Catalog

CONN TERM RECT 400 MCM

Part	Length - Overall [x]	Length - Overall [x]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Insulation	Wire Gauge	Contact Material	Mounting Type	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Tab Thickness	Tab Thickness	Terminal Style	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Contact Finish	Terminal Type	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Stud/Tab Size	Stud/Tab Size	Length - Overall
TE Connectivity Raychem Cable Protection 326016	123.95 mm	4.88 in	27.81 mm	1.095 "	Non-Insulated	400 MCM (kcmil)	Copper	Free Hanging (In-Line)	22.25 mm	0.876 in	0.18 in	4.57 mm	No Stud Hole	40.89 mm	1.61 in	Barrel Crimp	Tin	Standard

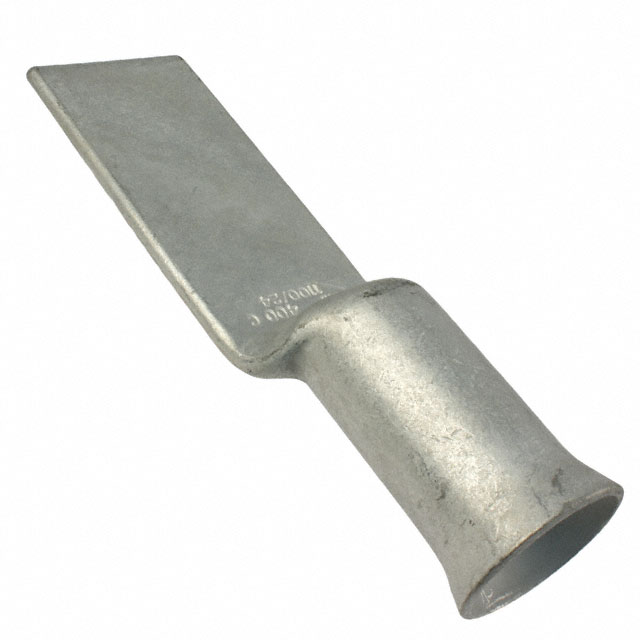

TE Connectivity Raychem Cable Protection 326021	149.1 mm	5.87 in	33.27 mm	1.31 "	Non-Insulated	400 MCM (kcmil)	Copper	Free Hanging (In-Line)	22.25 mm	0.876 in	0.18 in	4.57 mm	No Stud Hole	40.89 mm	1.61 in	Barrel Crimp	Tin	Standard
TE Connectivity Raychem Cable Protection 326003	73.41 mm	2.89 in	27.43 mm	1.08 in	Non-Insulated	400 MCM (kcmil)	Copper	Free Hanging (In-Line)	22.25 mm	0.876 in	0.18 in	4.57 mm	Single Stud Hole	40.89 mm	1.61 in	Barrel Crimp	Tin	Standard	9.91 mm	0.39 in	3/8 Stud
TE Connectivity Raychem Cable Protection 326007		3.01 in	27.81 mm	1.095 "	Non-Insulated	400 MCM (kcmil)	Copper	Free Hanging (In-Line)	22.25 mm	0.876 in	0.18 in	4.57 mm	Single Stud Hole	40.89 mm	1.61 in	Barrel Crimp	Tin	Standard	16.66 mm	0.656 in		0.625 Stud	76.45 mm
