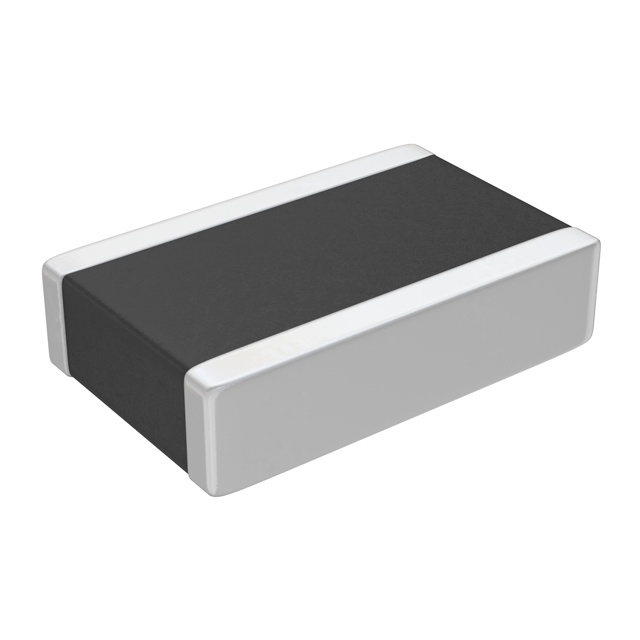

LLL215C70G Series
Manufacturer: Murata Power Solutions Inc.
Beta
⌘K
CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 4V, 20% +TOL, 20% -TOL, X7S, 22% TC, 1UF, SURFACE MOUNT, 0508, CHIP, ROHS COMPLIANT
| Part | Applications | Mounting Type | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Package / Case | Capacitance | Features | Voltage - Rated | Tolerance | Thickness (Max) [Max] | Thickness (Max) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Power Solutions Inc. | Bypass Decoupling | MLCC Surface Mount | X7S | 1.25 mm | 0.079 in | 2 mm | 0.049 in | 0508 | 1220 Metric | 1 µF | Low ESL (Reverse Geometry) | 4 V | 20 % | 0.02 in | 0.5 mm | -55 °C | 125 °C |
