34151 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

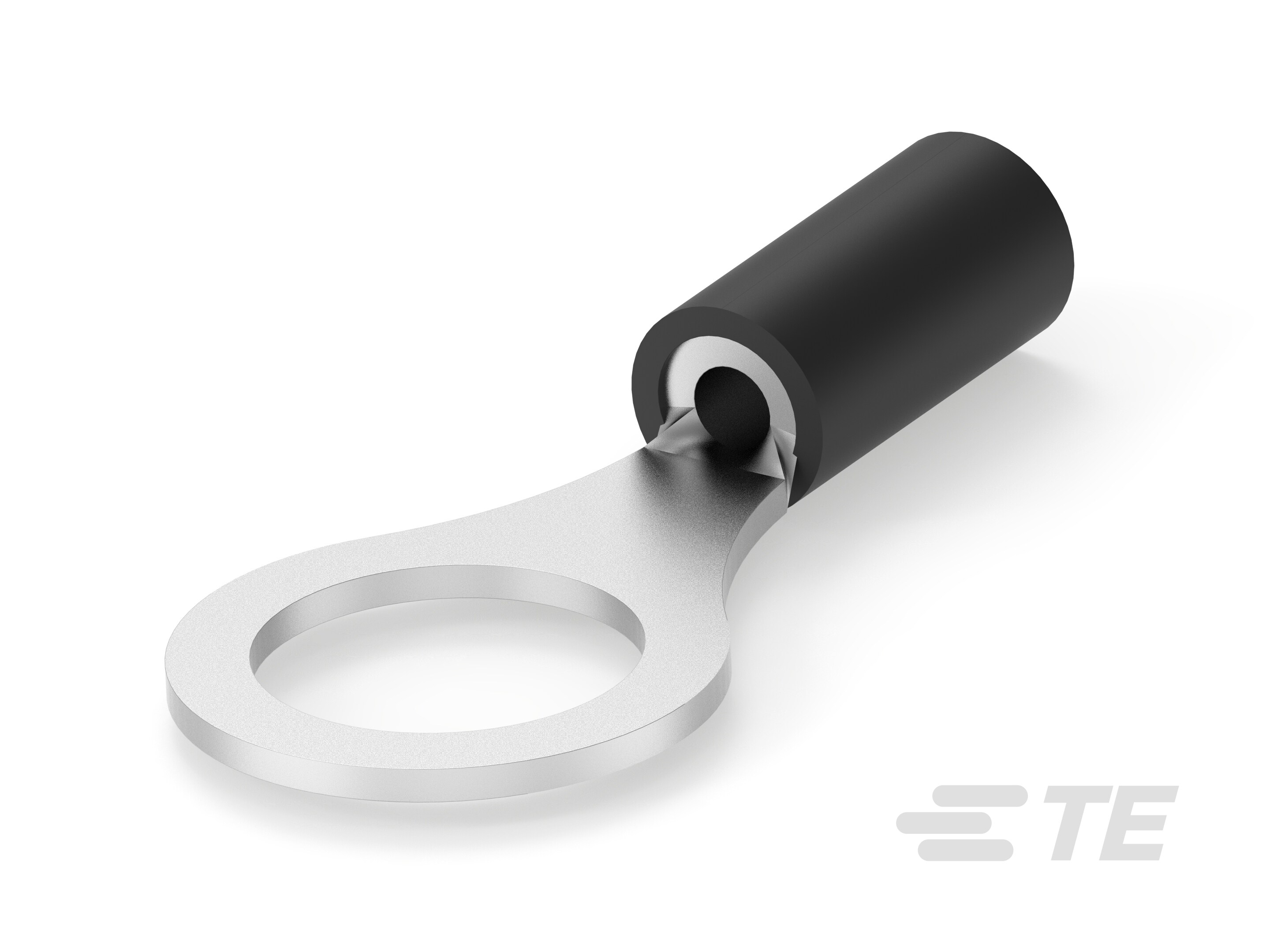

PG R 22-16 COMM 22-18 MIL 5/16
| Part | Contact Finish | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Thickness | Thickness | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Insulation | Terminal Type | Material - Insulation | Features | Color | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | Free Hanging (In-Line) | 22 AWG | 16 AWG | 1.09 in | 27.69 mm | 0.031 in | 0.79 mm | 0.3125 Stud | 11.91 mm | 0.469 in | Crimp | Insulated | Circular | Poly-Vinyl Chloride (PVC) | Serrated Termination | Black | Copper |
