803-99 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 86POS 0.1 TIN-LEAD PCB

...

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Mounting Type	Material Flammability Rating	Contact Type	Number of Positions Loaded	Connector Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Termination	Fastening Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Rows [custom]	Number of Positions

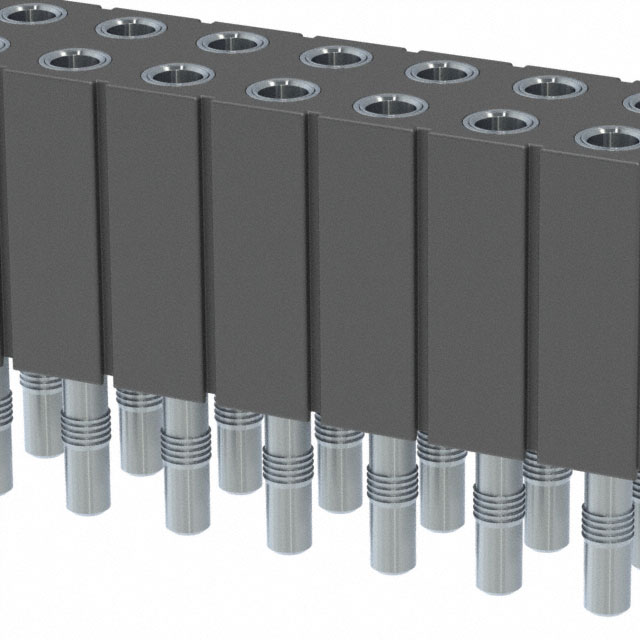

Mill-Max Manufacturing Corp. 803-99-086-62-001000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.143 in	3.63 mm	0.1 "	2.54 mm	0.276 in	7 mm	Press-Fit Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	86

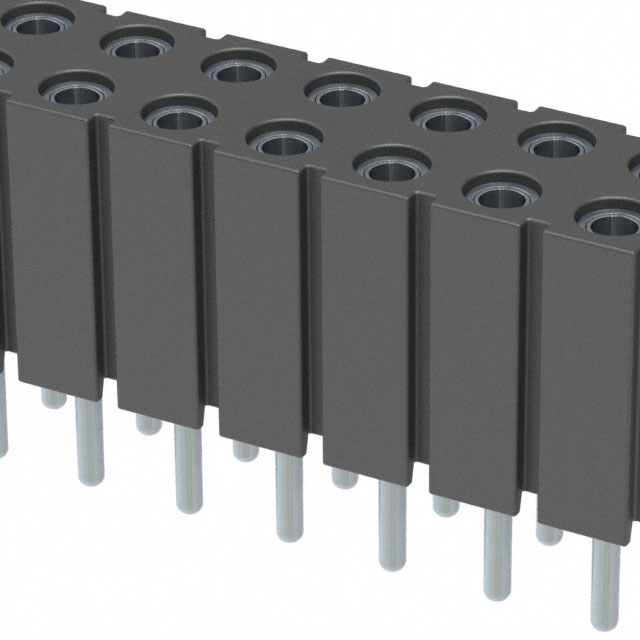

Mill-Max Manufacturing Corp. 803-99-100-10-004000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.118 in	3 mm	0.1 "	2.54 mm	0.272 in	6.91 mm	Solder	Push-Pull	Black	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	100

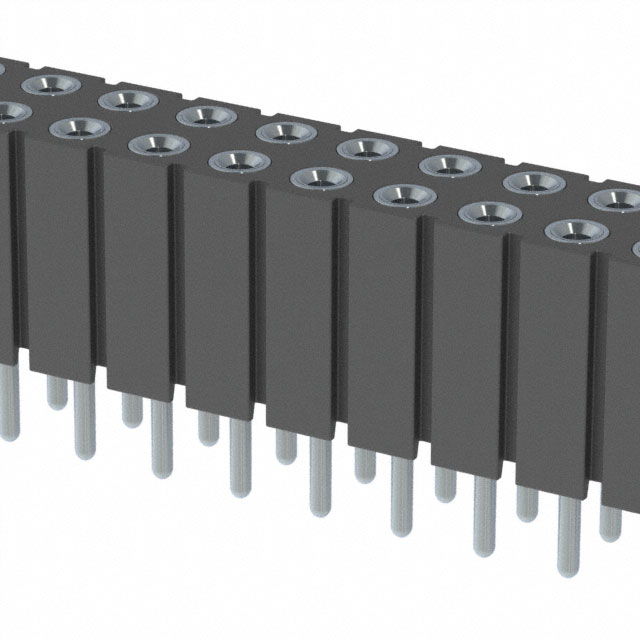

Mill-Max Manufacturing Corp. 803-99-070-10-001000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.118 in	3 mm	0.1 "	2.54 mm	0.276 in	7 mm	Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	70

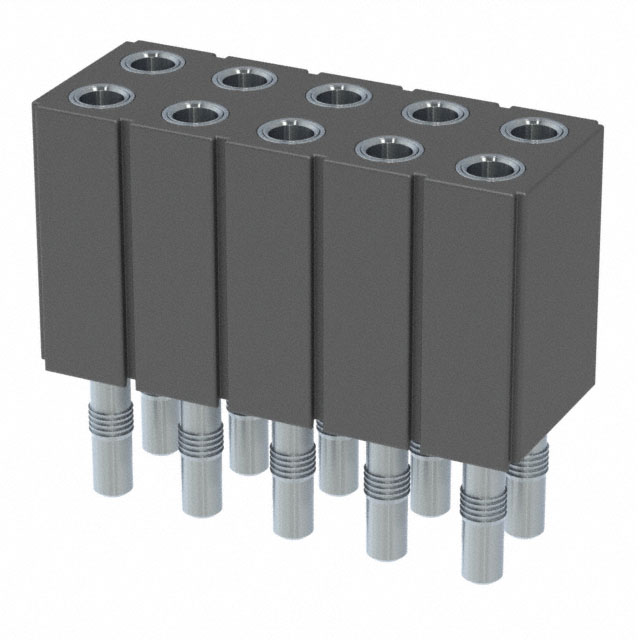

Mill-Max Manufacturing Corp. 803-99-010-62-001000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.143 in	3.63 mm	0.1 "	2.54 mm	0.276 in	7 mm	Press-Fit Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	10
Mill-Max Manufacturing Corp. 803-99-026-10-004000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.118 in	3 mm	0.1 "	2.54 mm	0.272 in	6.91 mm	Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	26
Mill-Max Manufacturing Corp. 803-99-066-10-004000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.118 in	3 mm	0.1 "	2.54 mm	0.272 in	6.91 mm	Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	66

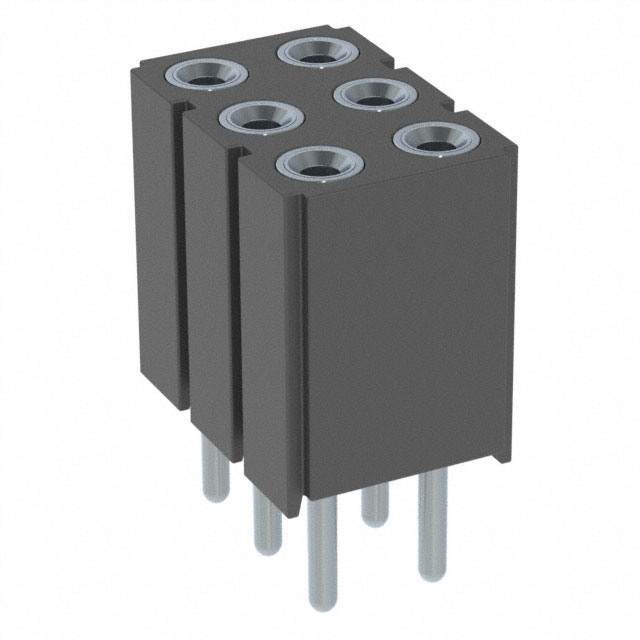

Mill-Max Manufacturing Corp. 803-99-006-10-001000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.118 in	3 mm	0.1 "	2.54 mm	0.276 in	7 mm	Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	6
Mill-Max Manufacturing Corp. 803-99-024-10-001000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.118 in	3 mm	0.1 "	2.54 mm	0.276 in	7 mm	Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	24

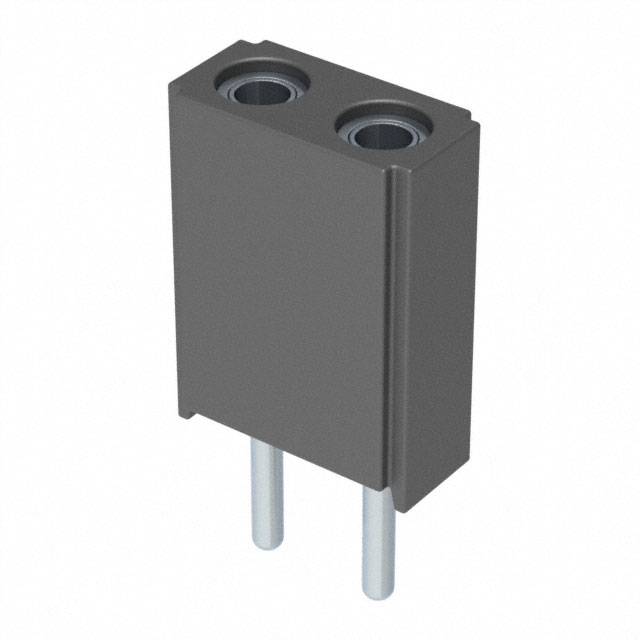

Mill-Max Manufacturing Corp. 803-99-002-10-004000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.118 in	3 mm			0.272 in	6.91 mm	Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	2

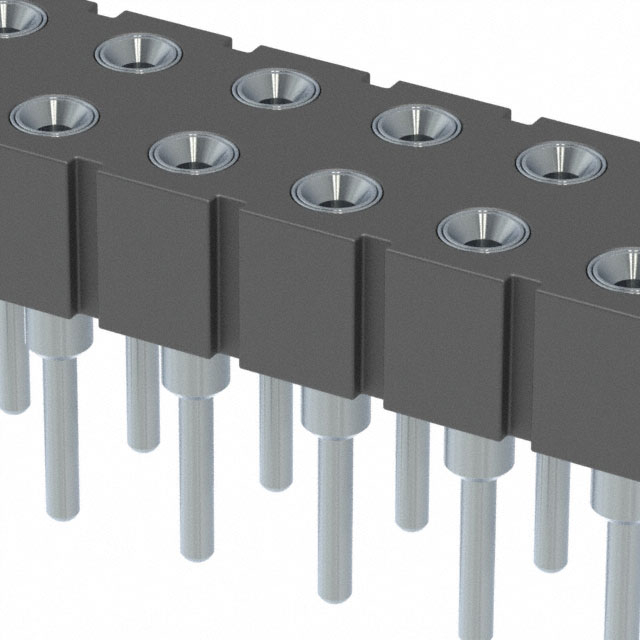

Mill-Max Manufacturing Corp. 803-99-026-10-002000	Beryllium Copper	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	UL94 V-0	Female Socket	All	Receptacle	4.5 A	0.1 in	2.54 mm	0.125 in	3.18 mm	0.1 "	2.54 mm	0.165 in	4.2 mm	Solder	Push-Pull	Black	100 çin	2.54 çm	Tin-Lead	-55 C	125 °C	Tin-Lead	2	26
