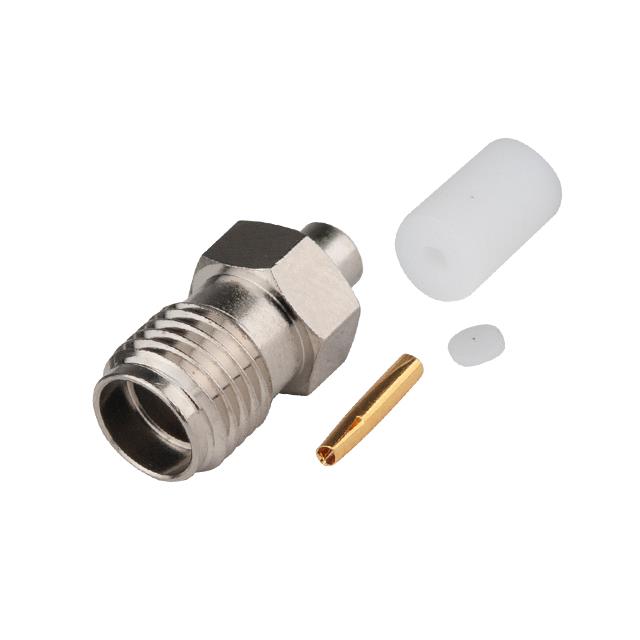

RSA-3555 Series
Manufacturer: RF Industries
Beta
⌘K
SMA FEMALE; 50 OHMS
| Part | Insertion Loss | Body Finish | Body Material | Center Contact Plating | Dielectric Material | Voltage Rating | Contact Termination | Cable Group | Mounting Type | Connector Style | Connector Type | Center Contact Material | Impedance | Frequency - Max [Max] | Housing Color | Shield Termination | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | 0.7 dB | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 V | Solder | RG-405 (.085" Semi Rigid) Belden 1671A | Free Hanging (In-Line) | SMA | Female Socket Jack | Beryllium Copper | 50 Ohms | 18 GHz | Silver | Solder | Threaded | 1 |
