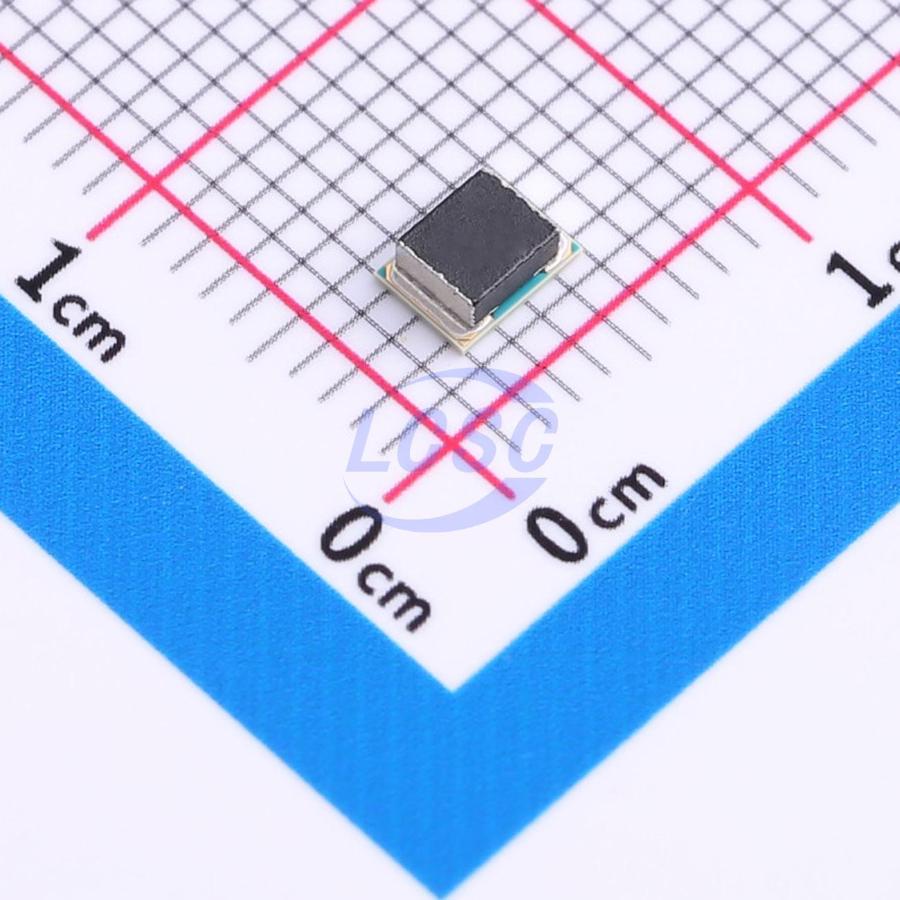

TPSM82816 Series

6-V 6-A step-down module with optional frequency synchronization, adjustable soft-start and tracking

Catalog

6-V 6-A step-down module with optional frequency synchronization, adjustable soft-start and tracking

Part	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Type	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Control Features	Mounting Type

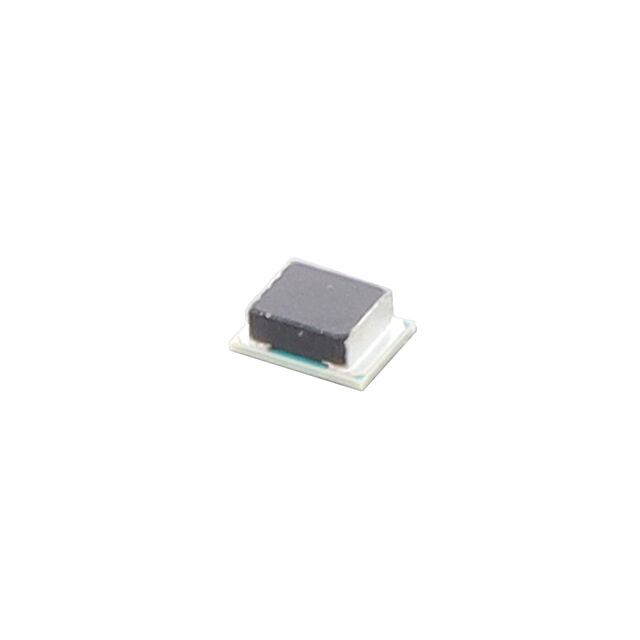

Texas Instruments TPSM82816SIER	6 V	1	0.06 "	1.6 mm	0.12 "	0.16 in	4 mm	3 mm	14-LDFN Module	6 A	5.5 V	0.6 V	Non-Isolated PoL Module	Adjustable Output Remote On/Off	ITE (Commercial)	125 °C	-40 °C	2.7 V	Active High Enable	Surface Mount

Catalog

6-V 6-A step-down module with optional frequency synchronization, adjustable soft-start and tracking

Key Features

• Adjustable and synchronizable switching frequency of 1.8MHz to 4MHzSpread spectrum clocking (optional)Selectable forced PWM or PFM/PWM operationOutput voltage accuracy ±1% (PWM operation)Input voltage range: 2.7V to 6VOutput voltage range: 0.6V to 5.5VAdjustable soft start or trackingPower-good output with window comparatorPrecise ENABLE input allowsUser-defined undervoltage lockoutExact sequencingOptimized for low EMI requirementsNo bond wire packageMagPack technology shields inductor and ICSimplified layout through optimized pinout100% duty cycleOutput dischargeTypical quiescent current: 18µAOperating temperature range: –40°C to 125°CMaximum package height: 1.6mm (SIE) / 2.0mm (VCA)Excellent thermal performancePin-to-pin compatible with:SIE:TPSM82813(3A) andTPSM82810(4A)VCA (MagPack):TPSM82811(1A),TPSM82812(2A),TPSM82813(3A)Adjustable and synchronizable switching frequency of 1.8MHz to 4MHzSpread spectrum clocking (optional)Selectable forced PWM or PFM/PWM operationOutput voltage accuracy ±1% (PWM operation)Input voltage range: 2.7V to 6VOutput voltage range: 0.6V to 5.5VAdjustable soft start or trackingPower-good output with window comparatorPrecise ENABLE input allowsUser-defined undervoltage lockoutExact sequencingOptimized for low EMI requirementsNo bond wire packageMagPack technology shields inductor and ICSimplified layout through optimized pinout100% duty cycleOutput dischargeTypical quiescent current: 18µAOperating temperature range: –40°C to 125°CMaximum package height: 1.6mm (SIE) / 2.0mm (VCA)Excellent thermal performancePin-to-pin compatible with:SIE:TPSM82813(3A) andTPSM82810(4A)VCA (MagPack):TPSM82811(1A),TPSM82812(2A),TPSM82813(3A)

Description

TPSM8281x are a family of pin-to-pin, 1A, 2A, 3A, 4A, and 6A compatible high efficiency and easy to use synchronous step-down DC/DC power modules with integrated inductors. The devices are based on a fixed-frequency peak current-mode control topology. The devices are used in telecommunication, test and measurement, and medical applications with high power density and ease of use requirements. Low resistance switches allow up to 6A continuous output current at high ambient temperatures. The switching frequency is externally adjustable from 1.8MHz to 4MHz and can also be synchronized to an external clock in the same frequency range. In power save mode, the TPSM8281x automatically enters PFM at light loads to maintain high efficiency across the whole load range. The TPSM8281x provides a 1% output voltage accuracy in PWM mode which helps design a power supply with high output voltage accuracy. The SS/TR pin sets the start-up time or tracks the output voltage to an external source. This action allows external sequencing of different supply rails and limits the inrush current during start-up. TPSM8281x are a family of pin-to-pin, 1A, 2A, 3A, 4A, and 6A compatible high efficiency and easy to use synchronous step-down DC/DC power modules with integrated inductors. The devices are based on a fixed-frequency peak current-mode control topology. The devices are used in telecommunication, test and measurement, and medical applications with high power density and ease of use requirements. Low resistance switches allow up to 6A continuous output current at high ambient temperatures. The switching frequency is externally adjustable from 1.8MHz to 4MHz and can also be synchronized to an external clock in the same frequency range. In power save mode, the TPSM8281x automatically enters PFM at light loads to maintain high efficiency across the whole load range. The TPSM8281x provides a 1% output voltage accuracy in PWM mode which helps design a power supply with high output voltage accuracy. The SS/TR pin sets the start-up time or tracks the output voltage to an external source. This action allows external sequencing of different supply rails and limits the inrush current during start-up.
