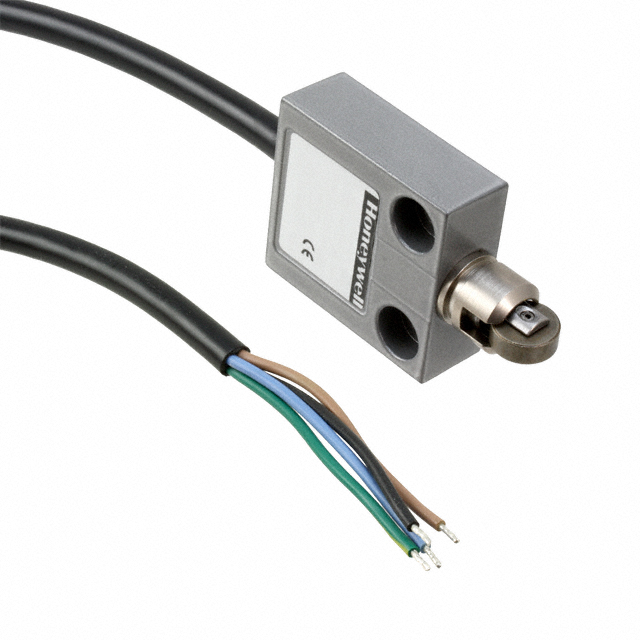

14CE3 Series

Catalog

SWITCH SNAP ACTION SPDT 5A 250V

Part	Features	Termination Style	Circuit	Switch Function	Pretravel	Pretravel	Operating Position	Operating Position	Differential Travel	Differential Travel	Release Force	Voltage Rating - AC	Operating Force	Mechanical Life	Mounting Type	Overtravel	Overtravel	Current Rating (Amps)	Ingress Protection	Actuator Type	Operating Temperature [Max]
Honeywell Sensing and Control EMEA 14CE3-3	Cable Length 3m	Cable Leads	SPDT	On-Mom	0.071 "	1.8 mm	1.122 in	28.5 mm	0.1 mm	0.004 in	450 gf	250 V	1200 gf	10000000 Cycles	Chassis Mount	0.118 "	3 mm	5 A	IP65 - Dust Tight Water Resistant	Roller Plunger	70 °C
Honeywell Sensing and Control EMEA 14CE3-1K	Cable Length 1m	Cable Leads	SPDT	On-Mom	0.071 "	1.8 mm	1.122 in	28.5 mm	0.1 mm	0.004 in	450 gf	250 V	2300 gf	10000000 Cycles	Chassis Mount	0.118 "	3 mm	5 A	IP66 - Dust Tight Water Resistant	Roller Plunger	70 °C
Honeywell Sensing and Control EMEA 14CE3-3K	Cable Length 3m	Cable Leads	SPDT	On-Mom	0.071 "	1.8 mm	1.122 in	28.5 mm	0.1 mm	0.004 in	450 gf	250 V	2300 gf	10000000 Cycles	Chassis Mount	0.118 "	3 mm	5 A	IP66 - Dust Tight Water Resistant	Roller Plunger	70 °C
Honeywell Sensing and Control EMEA 14CE3-1	Cable Length 1m	Cable Leads	SPDT	On-Mom	0.071 "	1.8 mm	1.122 in	28.5 mm	0.1 mm	0.004 in	450 gf	250 V	1200 gf	10000000 Cycles	Chassis Mount	0.118 "	3 mm	5 A	IP65 - Dust Tight Water Resistant	Roller Plunger	70 °C
