FGK.1B Series
Manufacturer: LEMO
Beta
⌘K

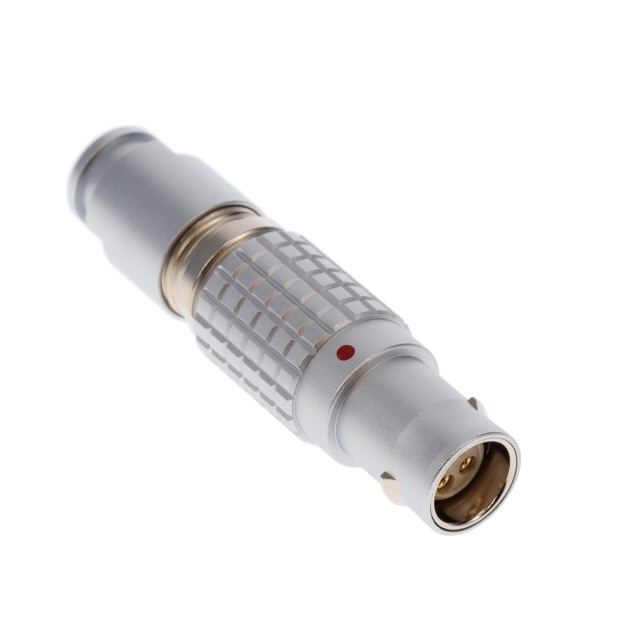

CONN PLUG FMALE 4P GOLD SLDR CUP
| Part | Shell Finish | Shell Size - Insert | Fastening Type | Shell Material | Contact Material | Contact Finish - Mating | Mounting Type | Orientation [custom] | Ingress Protection | Features | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Current Rating (Amps) | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Backshell Material, Plating | Primary Material | Material Flammability Rating | Insert Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chrome | 304 | Push-Pull | Brass | Bronze | Gold | Free Hanging (In-Line) | K | IP50 - Dust Protected | Backshell | Shielded | -55 C | 250 °C | 0.205 in | 4.2 mm | 5.2 mm | 0.165 " | 10 A | Plug Female Sockets | 1.5 Ám | 59 Áin | 4 | Brass Chrome | Metal | UL94 V-0 | Polyetheretherketone (PEEK) | Silver |
