3123-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

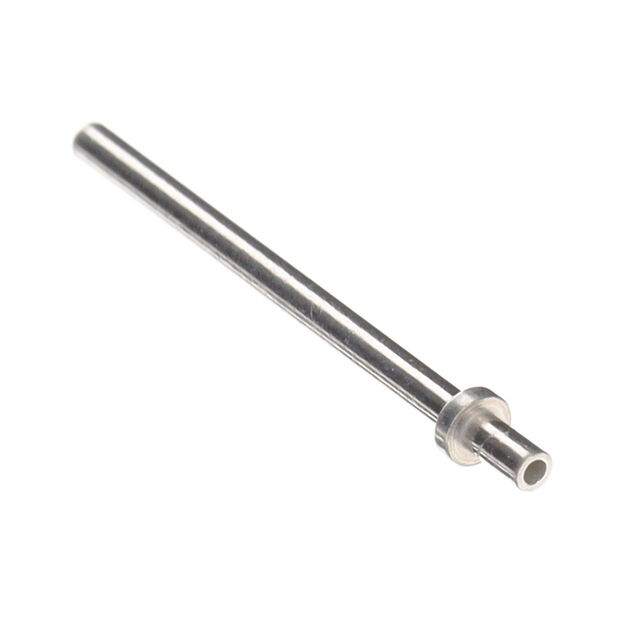

CONN PC PIN CIRC .040DIA TINLEAD
| Part | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] | Insulation | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Termination | Terminal Style | Contact Material | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Board Thickness | Board Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 2.08 mm | 0.082 " | 17.32 mm | 0.682 in | Non-Insulated | Through Hole | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Tin-Lead | Swage | Single End | Brass Alloy | PC Pin | 0.58 in | 14.73 mm | 1.57 mm | 0.062 " | 0.04 in | 1.02 mm |
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 2.08 mm | 0.082 " | 17.32 mm | 0.682 in | Non-Insulated | Through Hole | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Tin | Swage | Single End | Brass Alloy | PC Pin | 0.58 in | 14.73 mm | 1.57 mm | 0.062 " | 0.04 in | 1.02 mm |
 Mill-Max Manufacturing Corp. | 20 µin | 0.51 µm | 2.08 mm | 0.082 " | 17.32 mm | 0.682 in | Non-Insulated | Through Hole | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Gold | Swage | Single End | Brass Alloy | PC Pin | 0.58 in | 14.73 mm | 1.57 mm | 0.062 " | 0.04 in | 1.02 mm |
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | 2.08 mm | 0.082 " | 17.32 mm | 0.682 in | Non-Insulated | Through Hole | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Gold | Swage | Single End | Brass Alloy | PC Pin | 0.58 in | 14.73 mm | 1.57 mm | 0.062 " | 0.04 in | 1.02 mm |
 Mill-Max Manufacturing Corp. | 50 µin | 1.27 µm | 2.08 mm | 0.082 " | 17.32 mm | 0.682 in | Non-Insulated | Through Hole | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Gold | Swage | Single End | Brass Alloy | PC Pin | 0.58 in | 14.73 mm | 1.57 mm | 0.062 " | 0.04 in | 1.02 mm |
