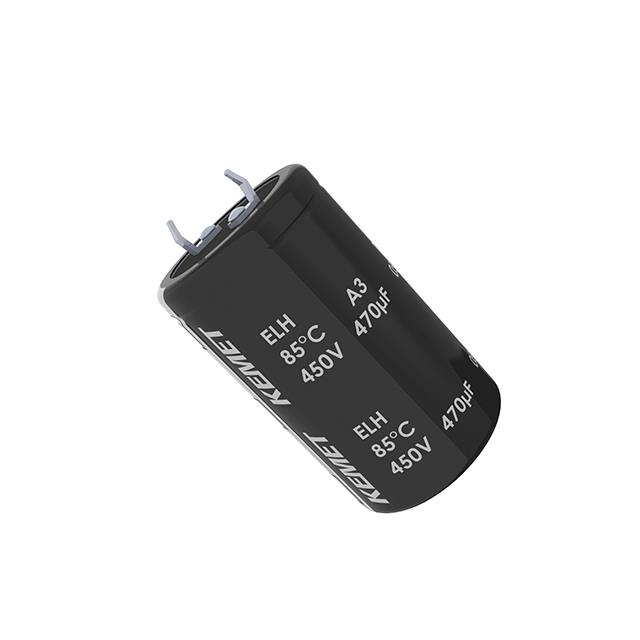

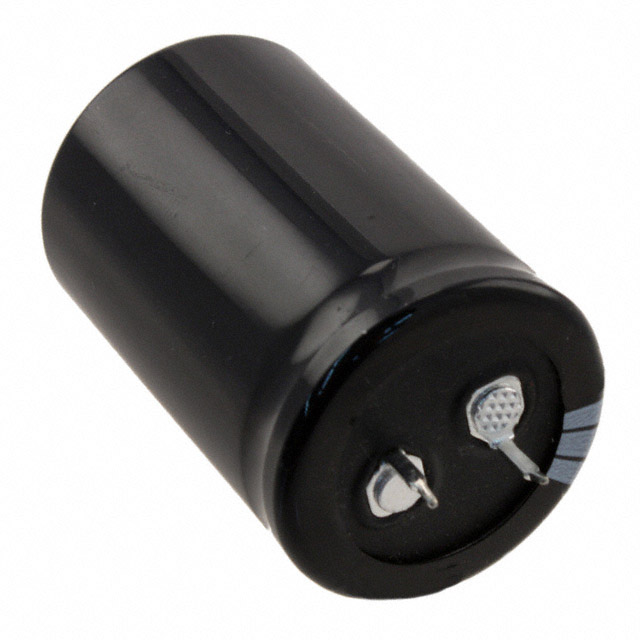

ELH Series

Manufacturer: KEMET

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 63V 4700UF 20% 25X40 85C

Part	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Ripple Current @ High Frequency	Capacitance	Tolerance	Mounting Type	Height - Seated (Max)	Size / Dimension
KEMET ELH478M063AR4AV	3.35 A	0.984 "	25 mm	63 V	Radial Can - Snap-In	0.394 in	10 mm	85 °C	-40 C	2000 Hrs	Polar	42 mm	1.654 in	General Purpose	3.886 A	4700 µF	20 %	Through Hole
KEMET ELH687M400AT3AA	2.5 A	1.378 "	35 mm	400 V	Radial Can - Snap-In	0.394 in	10 mm	85 °C	-25 °C	2000 Hrs	Polar		1.457 in	General Purpose	3.625 A	680 µF	20 %	Through Hole	37 mm
KEMET ELH107M450AQ3AA	120 Hz 950 mA	0.866 "	22 mm	450 V	Radial Can - Snap-In	0.394 in	10 mm	85 °C	-25 °C	2000 Hrs	Polar		1.457 in	General Purpose	1.3775 A	100 µF	20 %	Through Hole	37 mm
KEMET ELH229M025AS4AA	5.2 A	1.181 "		25 VDC	Radial Can - Snap-In	0.394 in	10 mm	85 °C	-40 C	2000 Hrs	Polar	42 mm	1.654 in	General Purpose	6.032 A	22000 µF	20 %	Through Hole		30 mm
