30801 Series
Manufacturer: Belden Inc.
Beta
⌘K

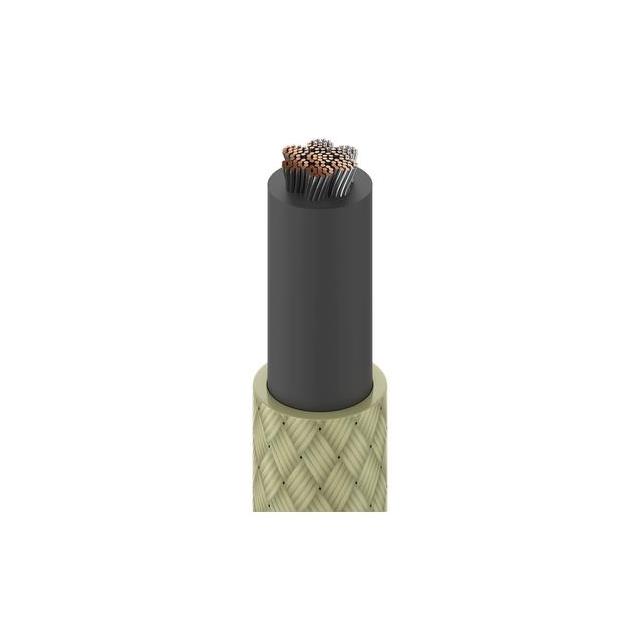

HOOK-UP STRND 1AWG WHITE
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length [x] | Length [x] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 2.03 mm | 0.08 in | Hook-Up | 600 V | 1 AWG | Glass Silicone | 0.622 in | 15.8 mm | 200 °C | -70 °C | UL Style 3126 | 3000 " | 76.2 m | 24 AWG | 210 strands | Copper Tinned | |||
Belden Inc. | 2.03 mm | 0.08 in | Hook-Up | 600 V | 1 AWG | Glass Silicone | 0.622 in | 15.8 mm | 200 °C | -70 °C | UL Style 3126 | 24 AWG | 210 strands | Copper Tinned | 30.5 m | 100 ft | Black |
