CFS-0802 Series

Catalog

DIP SWITCH, 8PST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Circuit	Actuator Level	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating	Height Above Board	Height Above Board	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Body Material	Contact Material	Electrical Life	Number of Positions	Current Rating (Amps)	Mounting Type
Nidec Components Corporation CFS-0802TA	SPST	Raised	0.858 "	21.8 mm	85 °C	-40 °C	J Lead	6 VDC	0.177 in	4.5 mm	Slide (Standard)	0.1 in	Full	2.54 mm	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	1000 Cycles	8	100 mA	Surface Mount

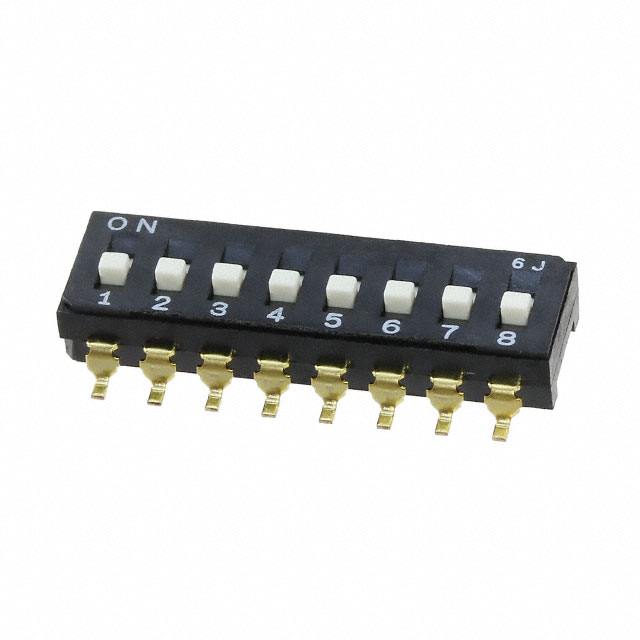

Nidec Components Corporation CFS-0802MB	SPST	Raised	0.858 "	21.8 mm	85 °C	-40 °C	Gull Wing	6 VDC	0.169 in	4.3 mm	Slide (Standard)	0.1 in	Full	2.54 mm	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	1000 Cycles	8	100 mA	Surface Mount
Nidec Components Corporation CFS-0802MA	SPST	Raised	0.858 "	21.8 mm	85 °C	-40 °C	J Lead	6 VDC	0.178 "	4.52 mm	Slide (Standard)	0.1 in	Full	2.54 mm	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	1000 Cycles	8	100 mA	Surface Mount
Nidec Components Corporation CFS-0802TB	SPST	Raised	0.858 "	21.8 mm	85 °C	-40 °C	Gull Wing	6 VDC	0.169 in	4.3 mm	Slide (Standard)	0.1 in	Full	2.54 mm	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	1000 Cycles	8	100 mA	Surface Mount
