7225-1512 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

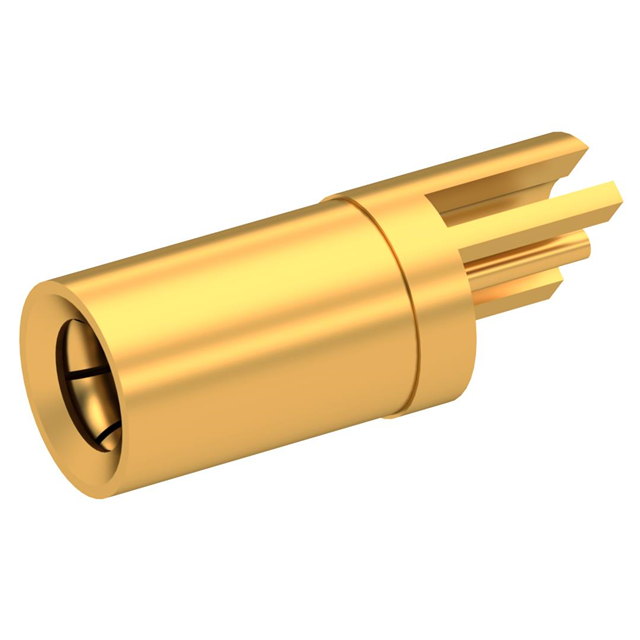

SSMB / EDGE CARD PLUG FEMALE GOL
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Material | Center Contact Plating | Dielectric Material | Body Finish | Mounting Type | Impedance | Shield Termination | Center Contact Material | Connector Type | Contact Termination | Connector Style | Fastening Type | Housing Color | Number of Ports | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | 250 V | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | Gold | Board Edge End Launch | 50 Ohms | Solder | Beryllium Copper | Female Socket Plug | Solder | SSMB | Snap-On | Gold | 1 | 12.4 GHz |
