DTB123ECHZG Series

PNP, SOT-23, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Catalog

PNP, SOT-23, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Part	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Frequency - Transition	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Resistor - Emitter Base (R2)	Resistor - Base (R1)	Current - Collector (Ic) (Max) [Max]	Mounting Type	Resistors Included	Transistor Type	Current - Collector Cutoff (Max) [Max]	Qualification	Grade	DC Current Gain (hFE) (Min) @ Ic, Vce
Rohm Semiconductor DTB123EKT146	SC-59 SOT-23-3 TO-236-3	39	300 mV	200 mW	200 MHz	SMT3	50 V	2.2 kOhms	2.2 kOhm	500 mA	Surface Mount	R1 and R2	PNP - Pre-Biased	500 nA
Rohm Semiconductor DTB123TCHZGT116	SC-59 SOT-23-3 TO-236-3		300 mV	200 mW	200 MHz	SST3	40 V		2.2 kOhm	500 mA	Surface Mount		PNP - Pre-Biased	500 nA	AEC-Q101	Automotive
Rohm Semiconductor DTB123YCHZGT116	SC-59 SOT-23-3 TO-236-3		300 mV	200 mW	200 MHz	SST3		10 kOhms	2.2 kOhm	500 mA	Surface Mount		PNP - Pre-Biased		AEC-Q101	Automotive	56
Rohm Semiconductor DTB123YCT116	SC-59 SOT-23-3 TO-236-3		300 mV	200 mW	200 MHz	SST3	50 V	10 kOhms	2.2 kOhm	500 mA	Surface Mount		PNP - Pre-Biased	500 nA			56
Rohm Semiconductor DTB123TKT146	SC-59 SOT-23-3 TO-236-3		300 mV	200 mW	200 MHz	SMT3	40 V		2.2 kOhm	500 mA	Surface Mount		PNP - Pre-Biased	500 nA
Rohm Semiconductor DTB123YKT146	SC-59 SOT-23-3 TO-236-3		300 mV	200 mW	200 MHz	SMT3	50 V	10 kOhms	2.2 kOhm	500 mA	Surface Mount		PNP - Pre-Biased	500 nA			56
Rohm Semiconductor DTB123ECHZGT116	SC-59 SOT-23-3 TO-236-3	39	300 mV	200 mW	200 MHz	SST3		2.2 kOhms	2.2 kOhm	500 mA	Surface Mount		PNP - Pre-Biased		AEC-Q101	Automotive
Rohm Semiconductor DTB123ECT116	SC-59 SOT-23-3 TO-236-3	39	300 mV	200 mW	200 MHz	SST3	50 V	2.2 kOhms	2.2 kOhm	500 mA	Surface Mount		PNP - Pre-Biased	500 nA

Catalog

PNP, SOT-23, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Key Features

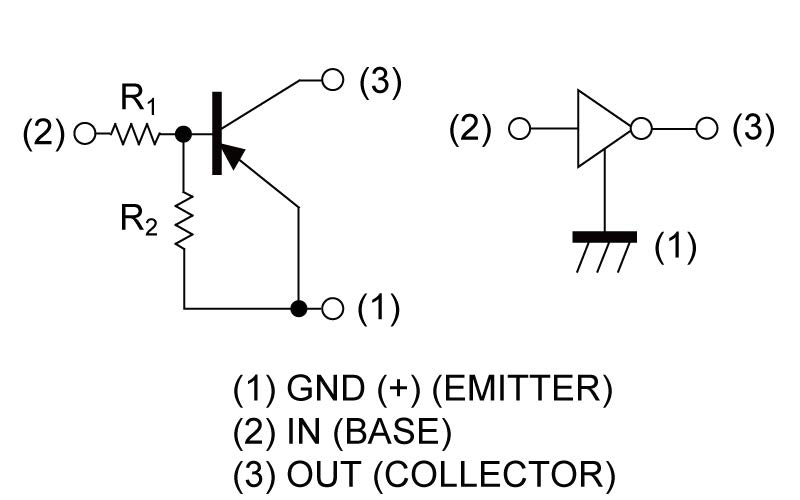

• Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors. (see equivalent circuit), The bias resistors consist of thin-film resistors with complete isolation to allow positive, biasing of the input. They also have the advantage of almost completely eliminating parasitic effects., Only the on/off conditions need to be set for operation, making the device design easy., Complementary NPN Types: DTD123YC HZG

Description

DTB123EC is an digital transistor (Resistor built-in type transistor). Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.
