DST5200 Series

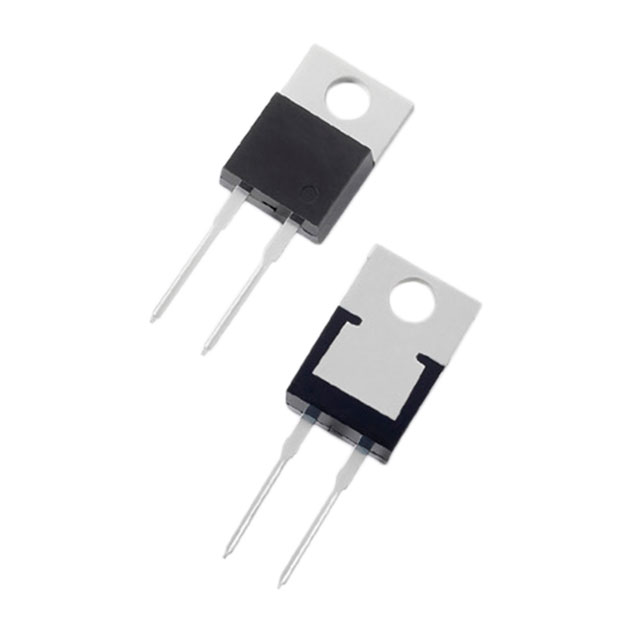

200V 5A Ultralow Schottky DST _TO-220AC

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

200V 5A Ultralow Schottky DST _TO-220AC

Part	Technology	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Speed
Littelfuse/Commercial Vehicle Products DST5200	Schottky	TO-220AC	200 V	Through Hole	150 °C	-55 °C	900 mV	TO-220-2	150 µA	5 A	200 mA 500 ns

Catalog

200V 5A Ultralow Schottky DST _TO-220AC

Key Features

• Ultra low forward voltage drop

• High frequency operation

• High junction temperature capability

• Guard ring for enhanced ruggedness and long term reliability

• Single die in TO-220AC package

Description

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
