TGD0412 Series
Manufacturer: Delta Electronics
Beta
⌘K

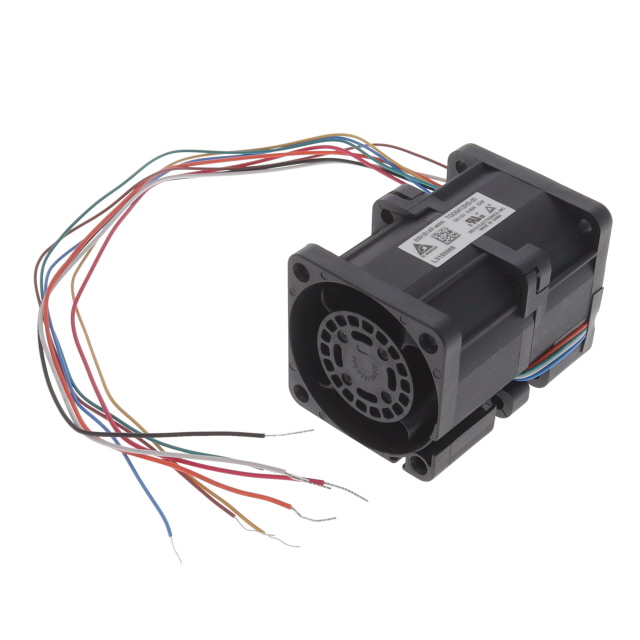

FAN AXIAL DUAL 40X56MM 12VDC
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Material - Blade | Material - Frame | Fan Type | Static Pressure | Static Pressure | Air Flow | Air Flow | Features | Weight [custom] | Weight [custom] | Size / Dimension [x] | Size / Dimension [z] | Noise | Width [y] | RPM [custom] | RPM [custom] | Approval Agency | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Power (Watts) | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3.5 A | 10.8 VDC | 12.6 VDC | 70000 Hrs | Plastic | Plastic | Tubeaxial (Dual) | 5.8 in H2O | 1444.7 Pa | 1.1 m³/min | 39.3 CFM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 0.201 lb | 91.17 g | 40 mm | 40 mm | 73 dB(A) | 56 mm | 23000 RPM | 27000 RPM | cURus TUV | 4 | 70 °C | -10 °C | 12 VDC | 42 W | Ball |
