5493-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

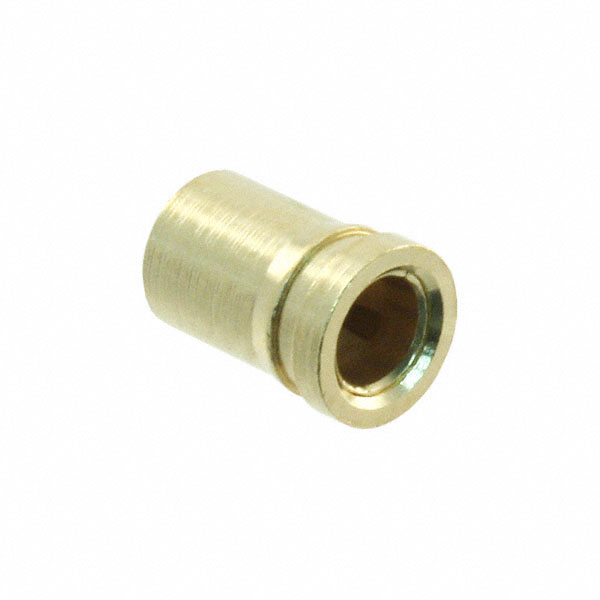

PRESS-FIT RECEPTACLE; ACCEPTS .0
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Length - Overall [x] | Length - Overall [x] | Contact Finish | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Closed Bottom | -55 C | 125 °C | 5.66 mm | 0.223 in | Gold | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 0.158 in | 4.01 mm | 30 Áin | 0.76 Ám | Press-Fit | Beryllium Copper | No Tail | 0.171 " | 4.34 mm | 0.122 in | 3.1 mm |
