629-015 Series

Manufacturer: EDAC Inc.

Catalog

629 SERIES RIGHT ANGLE D-SUB PLU

Part	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material, Finish	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Connector Style	Termination	Current Rating (Amps)	Connector Type	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Features	Flange Feature	Number of Rows [custom]	Contact Finish	Number of Positions	Contact Finish Thickness	Flange Feature
EDAC Inc. 629-015-640-041	Polyester Thermoplastic	Copper Alloy	-55 C	85 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	30 Áin	0.76 Ám	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	2	Gold	15

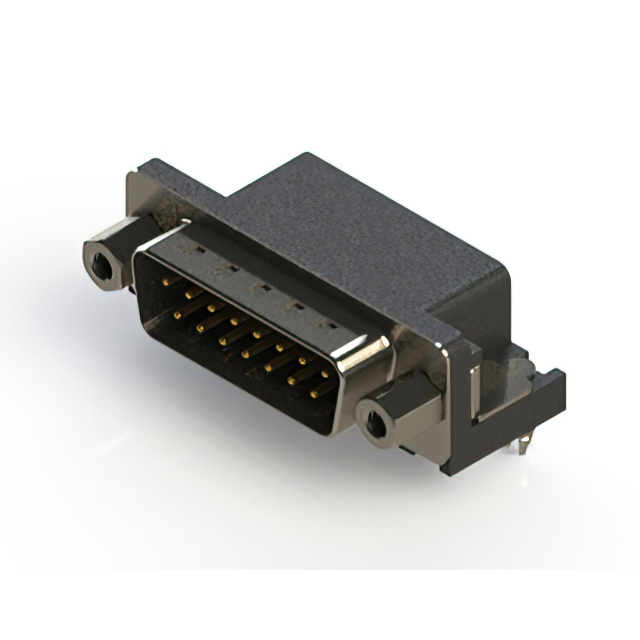

EDAC Inc. 629-015-340-043	Polyester Thermoplastic	Copper Alloy	-55 C	85 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	15 µin	0.38 µm	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Board Lock Grounding Indents Mounting Brackets Shielded	4-40 Mating Side Female Screwlock	2	Gold	15
EDAC Inc. 629-015-240-541	Polyester Thermoplastic	Copper Alloy	-55 C	125 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal			UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	2	Gold	15	Flash
EDAC Inc. 629-015-340-515	Polyester Thermoplastic	Copper Alloy	-55 C	125 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	15 µin	0.38 µm	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Grounding Indents Mounting Brackets Shielded	Housing/Shell (M3)	2	Gold	15

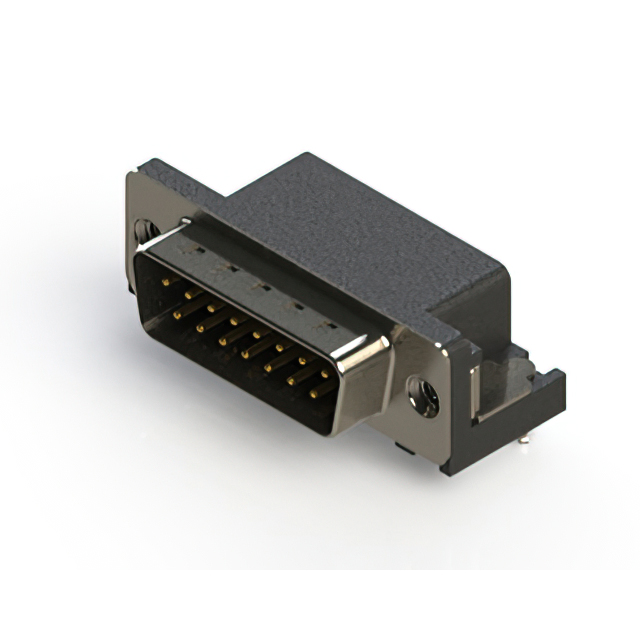

EDAC Inc. 629-015-340-042	Polyester Thermoplastic	Copper Alloy	-55 C	85 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	15 µin	0.38 µm	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell	2	Gold	15		4-40
EDAC Inc. 629-015-340-541	Polyester Thermoplastic	Copper Alloy	-55 C	125 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	15 µin	0.38 µm	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	2	Gold	15
EDAC Inc. 629-015-640-543	Polyester Thermoplastic	Copper Alloy	-55 C	125 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	30 Áin	0.76 Ám	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Board Lock Grounding Indents Mounting Brackets Shielded	4-40 Mating Side Female Screwlock	2	Gold	15
EDAC Inc. 629-015-240-513	Polyester Thermoplastic	Copper Alloy	-55 C	125 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal			UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Grounding Indents Mounting Brackets Shielded	4-40 Mating Side Female Screwlock	2	Gold	15	Flash

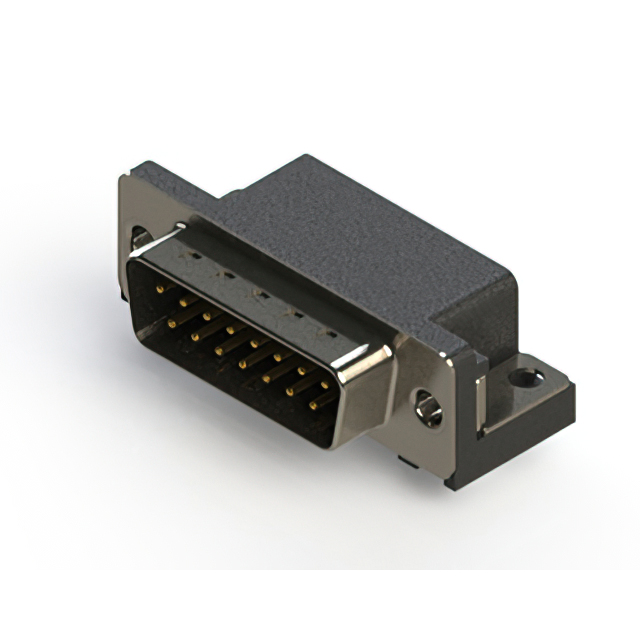

EDAC Inc. 629-015-640-011	Polyester Thermoplastic	Copper Alloy	-55 C	85 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	30 Áin	0.76 Ám	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	2	Gold	15

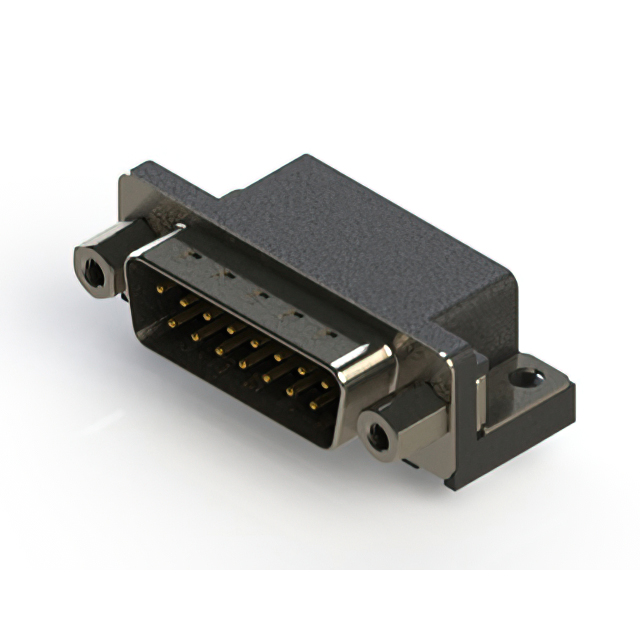

EDAC Inc. 629-015-640-013	Polyester Thermoplastic	Copper Alloy	-55 C	85 °C	Black	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Signal	30 Áin	0.76 Ám	UL94 V-0	D-Sub	Solder	3 A	Plug Male Pins	2	10.4 mm	0.409 in	Grounding Indents Mounting Brackets Shielded	4-40 Mating Side Female Screwlock	2	Gold	15
