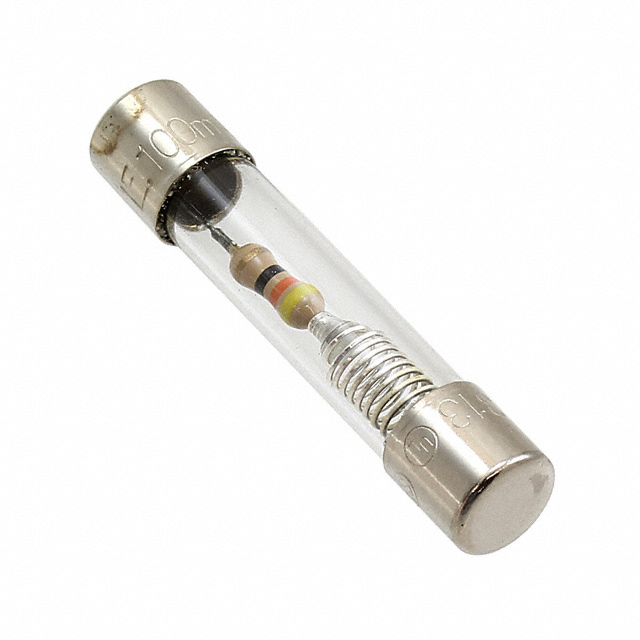

FUSE 250V SB 3AG Pb-FREE .600A
Description
AI
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V SB 3AG Pb-FREE .600A
FUSE 250V SB 3AG Pb-FREE .600A
| Part | Package / Case [y] | Package / Case [x] | Package / Case | Approval Agency | Melting I²t | Response Time | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Rating - AC | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Fuse Type | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.25 in | 3AB 3AG | CE CSA UL | 4 I²t | Slow Blow | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 250 V | Requires Holder | -55 C | 125 °C | 600 mA | 35 A | Cartridge Glass | ||
 LITTELFUSE | 0.25 in | 3AB 3AG | CE CSA UL | 4 I²t | Slow Blow | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 250 V | Requires Holder | -55 C | 125 °C | 600 mA | 35 A | Cartridge Glass | ||
 LITTELFUSE | 0.25 in | 3AB 3AG | CE CSA UL | 4 I²t | Slow Blow | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 250 V | Requires Holder | -55 C | 125 °C | 600 mA | 35 A | Cartridge Glass | 0.912 Ohms |
