745076 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

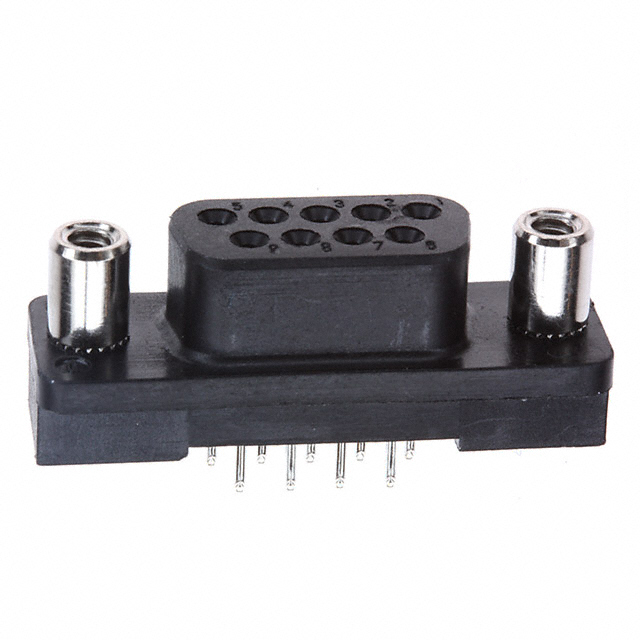

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Color | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination | Mounting Type | Flange Feature | Contact Finish | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Connector Style | Contact Type | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | 125 VDC | Polyester | -55 C | 105 ░C | Phosphor Bronze | Solder | Through Hole | 4-40 Mating Side Female Screwlock | Gold | 2 | 1 | DE E | UL94 V-0 | 30 Áin | 0.76 Ám | 6 A | D-Sub | Signal | 9 | Receptacle Female Sockets |
