ED205 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 3POS TOP ENTRY 10MM PCB
| Part | Torque - Screw | Torque - Screw | Screw Thread | Housing Material | Contact Material - Plating | Clamp Material - Plating [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Features | Number of Levels | Mating Orientation | Wire Termination | Current | Wire Gauge [Min] | Wire Gauge [Max] | Pitch | Pitch | Positions Per Level | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

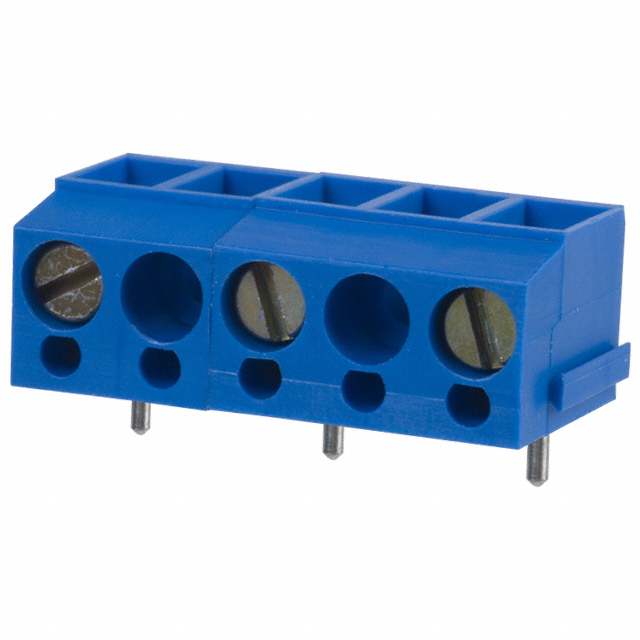

 On Shore Technology Inc. | 4.4 Lb-In | 0.5 Nm | M3 | Polyamide (PA) Nylon | Brass | Stainless Steel | -30 ░C | 105 ░C | Through Hole | Blue | Interlocking (Side) | 1 | Vertical with Board | Screw - Leaf Spring Wire Guard | 15 A | 14 AWG | 22 AWG | 0.394 in | 10 mm | 3 | 300 VDC |

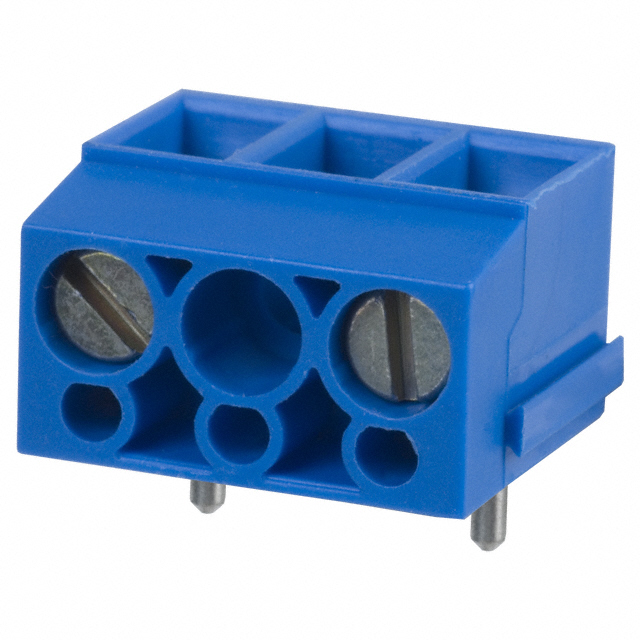

 On Shore Technology Inc. | 4.4 Lb-In | 0.5 Nm | M3 | Polyamide (PA) Nylon | Brass | Stainless Steel | -30 ░C | 105 ░C | Through Hole | Blue | Interlocking (Side) | 1 | Vertical with Board | Screw - Leaf Spring Wire Guard | 15 A | 14 AWG | 22 AWG | 0.394 in | 10 mm | 2 | 300 VDC |
