76031 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

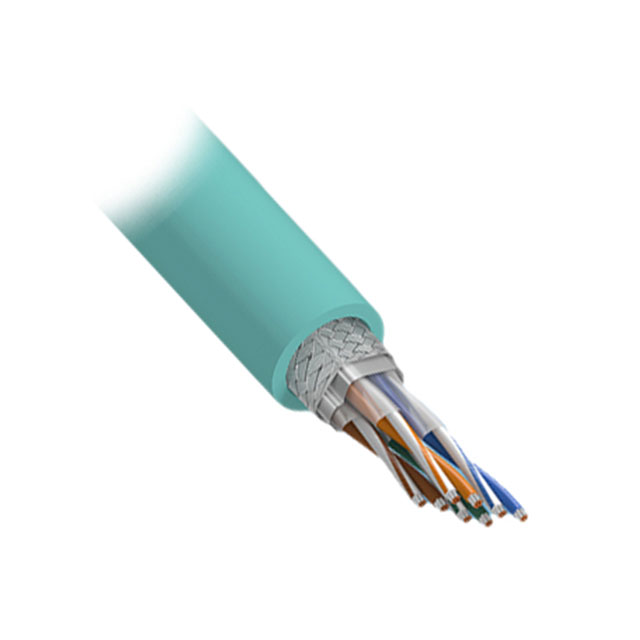

CABLE CAT5E 8CON 24AWG TEAL 100'
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Material | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length [x] | Length [x] | Usage | Wire Gauge | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 75 % 100 % | 80 °C | -40 C | Teal | Copper Tinned | Braid Foil | 0.035 in | 0.889 mm | Oil Resistant UV Resistant | Thermoplastic Elastomer (TPE) | Polyethylene (PE) | Multi-Pair Cat5e | 7 | 32 AWG | 600 V | 7.62 mm | 0.3 in | 8 | 100 ft | 30.5 m | Industrial Network | 24 AWG | UL Style 2463 |
