749085 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

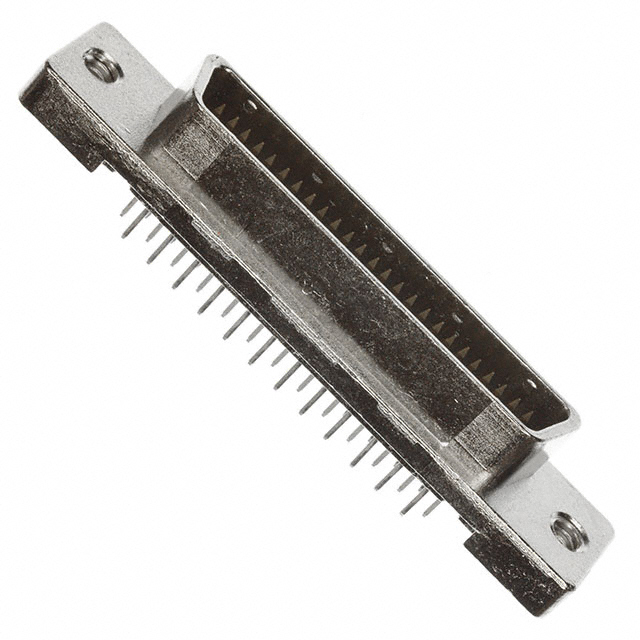

CONN D-TYPE PLUG 100P VERT SLDR
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Termination | Connector Type | Material Flammability Rating | Flange Feature | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Mounting Type | Connector Style | Number of Rows [custom] | Number of Positions | Features | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Phosphor Bronze | Liquid Crystal Polymer (LCP) Polyester | -55 C | 105 ░C | 30 VDC | Solder | Plug Male Pins | UL94 V-0 | Housing/Shell | 4-40 | 0.1 | 0.05 | Signal | Through Hole | D-Type | 2 | 100 | Shielded | Gold |
 TE Connectivity AMP Connectors | Black | Phosphor Bronze | Liquid Crystal Polymer (LCP) Polyester | -55 C | 105 ░C | 30 VDC | Solder | Plug Male Pins | UL94 V-0 | Housing/Shell | 4-40 | 0.1 | 0.05 | Signal | Through Hole | D-Type | 2 | 50 | Shielded | Gold |
