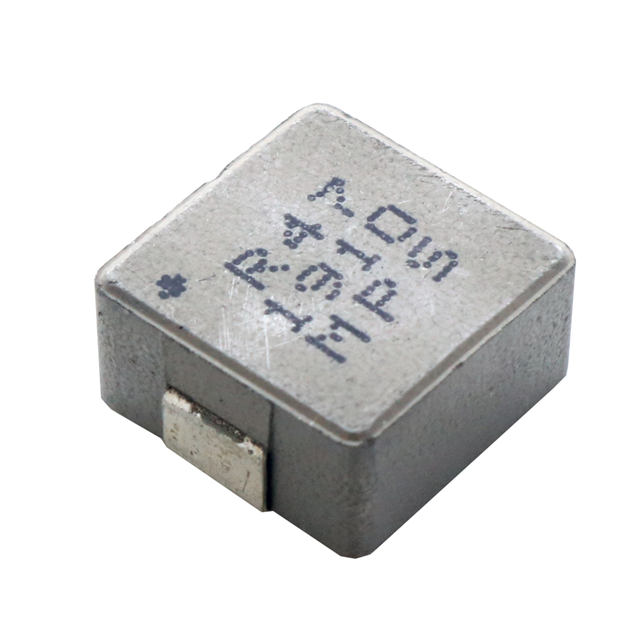

MPL-AY1265 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 1 ΜH, 25.5 A, SHIELDED, 43 A, MPL-AY SERIES
| Part | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) | Inductance | Current - Saturation (Isat) | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 1.5 mOhm | 1 µH | 43 A | 25.5 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
 Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 13.3 mOhm | 10 µH | 16 A | 10.7 Amps | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 5.5 mOhm | 3.3 µH | 16 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded | |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 820 nH | 46 A | 27 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded | |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 9.9 mOhm | 6.8 µH | 19.5 A | 12 Amps | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 3.7 mOhm | 2.2 µH | 26.5 A | 17 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 12.5 mOhm | 8.2 µH | 18 A | 11.5 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 1.8 mOhm | 1.2 µH | 37 A | 24 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 8.6 mOhm | 5.6 µH | 20 A | 13 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
Monolithic Power Systems Inc. | 2-SMD J-Lead | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 21.8 mOhm | 15 µH | 8.5 A | -40 C | 155 C | Surface Mount | 6.5 mm | 0.256 in | 100 kHz | Molded | Unshielded |
