SFH640 Series

Catalog

OPTOISO 5.3KV TRANS W/BASE 6SMD

Part	Current Transfer Ratio (Max)	Package / Case	Voltage - Isolation	Supplier Device Package	Number of Channels	Mounting Type	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Turn On / Turn Off Time (Typ)	Voltage - Output (Max) [Max]	Input Type	Vce Saturation (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case
Vishay General Semiconductor - Diodes Division SFH640-3X019	200 %	6-SMD Gull Wing	5300 Vrms	6-SMD	1	Surface Mount	50 mA	1.1 V	5 µs 6 µs	300 V	DC	400 mV	100 °C	-55 °C	5.5 µs	2.5 µs	100 %	60 mA

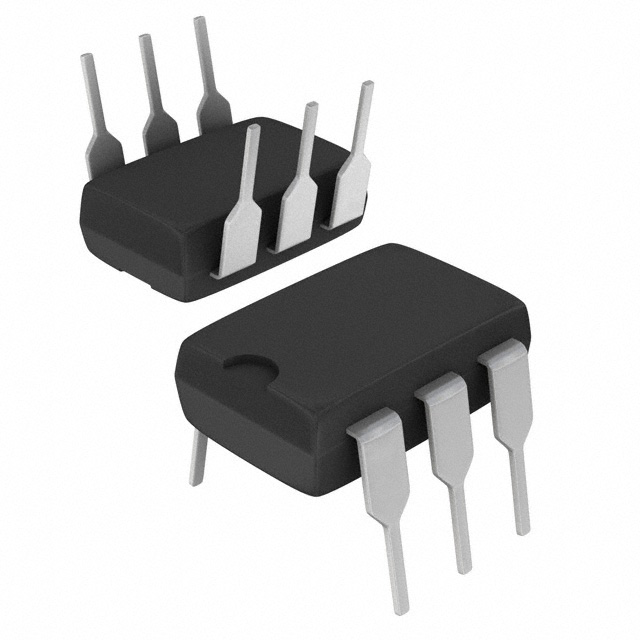

Vishay General Semiconductor - Diodes Division SFH640-3	200 %	6-DIP	5300 Vrms	6-DIP	1	Through Hole	50 mA	1.1 V	5 µs 6 µs	300 V	DC	400 mV	100 °C	-55 °C	5.5 µs	2.5 µs	100 %	60 mA	0.3 in	7.62 mm
Vishay General Semiconductor - Diodes Division SFH640-3X007	200 %	6-SMD Gull Wing	5300 Vrms	6-SMD	1	Surface Mount	50 mA	1.1 V	5 µs 6 µs	300 V	DC	400 mV	100 °C	-55 °C	5.5 µs	2.5 µs	100 %	60 mA
Vishay General Semiconductor - Diodes Division SFH640-2	125 %	6-DIP	5300 Vrms	6-DIP	1	Through Hole	50 mA	1.1 V	5 µs 6 µs	300 V	DC	400 mV	100 °C	-55 °C	5.5 µs	2.5 µs	63 %	60 mA	0.3 in	7.62 mm
