200AWMDP3 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Actuator Material	Actuator Length	Electrical Life (Cycles)	Voltage Rating - AC	Current Rating	Mounting Type	Termination Style	Illumination	Ingress Protection Description	Ingress Protection IP Rating	Switch Function	Bushing Thread	Voltage Rating - DC	Actuator Type	Operating Temperature (Max)	Operating Temperature (Min)	Features	Circuit

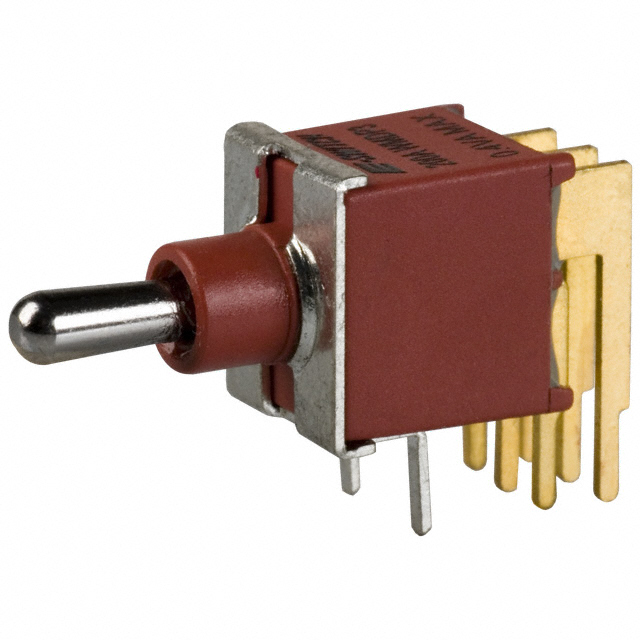

E-Switch 200AWMDP3T2A1M6RE	Brass Chrome Plated	5.33 mm 6.1 mm	50000	20 V	0.4 VA	Right Angle Through Hole	PC Pin	Non-Illuminated	Dust Tight Waterproof	IP67	On-Off-On	Unthreaded	20 V	Standard Round	85 °C	-30 °C	Epoxy Sealed Terminals	DPDT
E-Switch 200AWMDP3T1A1VS2QE	Brass Chrome Plated	10.16 mm	50000	120 V	3 A	Through Hole	PC Pin	Non-Illuminated	Dust Tight Waterproof	IP67	On-Off-On	Unthreaded	28 V	Standard Round	85 °C	-30 °C	Epoxy Sealed Terminals	DPDT

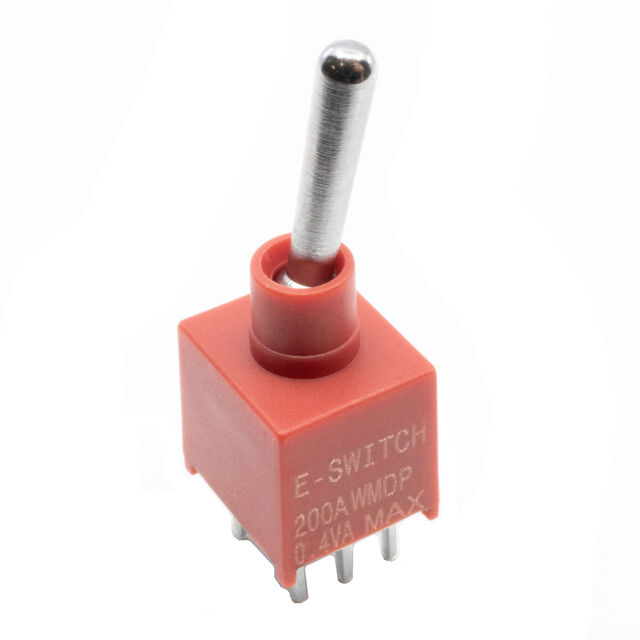

E-Switch 200AWMDP3T1A1M2QE	Brass Chrome Plated	10.16 mm	50000	120 V	3 A	Through Hole	PC Pin	Non-Illuminated	Dust Tight Waterproof	IP67	On-Off-On	Unthreaded	28 V	Standard Round	85 °C	-30 °C	Epoxy Sealed Terminals	DPDT
