9WP1224 Series

Catalog

FAN AXIAL 120X38MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Size / Dimension [z]	Size / Dimension [x]	Termination	Bearing Type	Ingress Protection	Fan Type	Width [y]	Voltage - Rated	Power (Watts)	Air Flow	Air Flow	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Noise	RPM	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Features

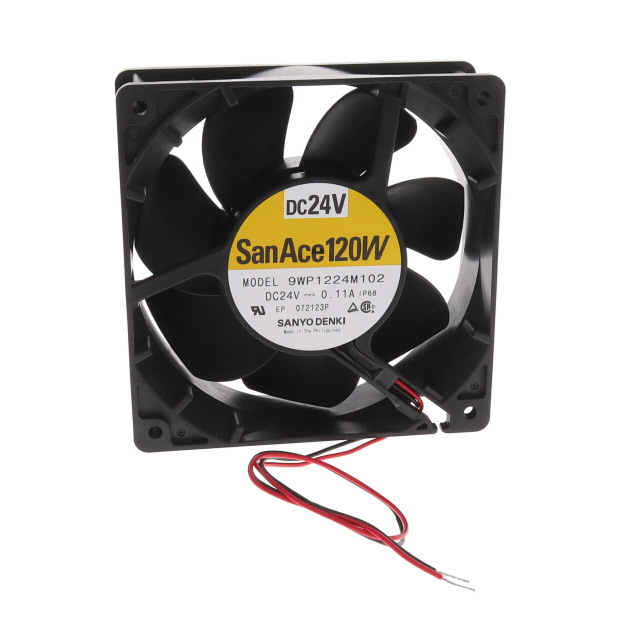

Sanyo Denki America Inc. 9WP1224M102	Plastic	Plastic	120 mm	120 mm	2 Wire Leads	Ball	IP68 - Dust Tight Waterproof	Tubeaxial	38 mm	24 VDC	2.64 W
Sanyo Denki America Inc. 9WP1224H102	Plastic	Plastic	120 mm	120 mm	2 Wire Leads	Ball	IP55 - Dust Protected Water Resistant	Tubeaxial	38 mm	24 VDC	5.28 W	2.77 m³/min	99 CFM	0.22 A	27.6 VDC	14	40000 Hrs	39 dB(A)	2600 RPM	CSA TUV UL	70 °C	-10 °C	0.794 lb	360.15 g	0.283 in H2O	70.5 Pa
Sanyo Denki America Inc. 9WP1224H1D01	Plastic	Plastic	120 mm	120 mm	3 Wire Leads	Ball	IP68 - Dust Tight Waterproof	Tubeaxial	38 mm	24 VDC	5.28 W	2.77 m³/min	99 CFM	0.22 A	27.6 VDC	14	40000 Hrs	39 dB(A)	2600 RPM	CSA TUV UL	70 °C	-20 ░C	0.794 lb	360.15 g	0.283 in H2O	70.5 Pa	Locked Rotor Sensor

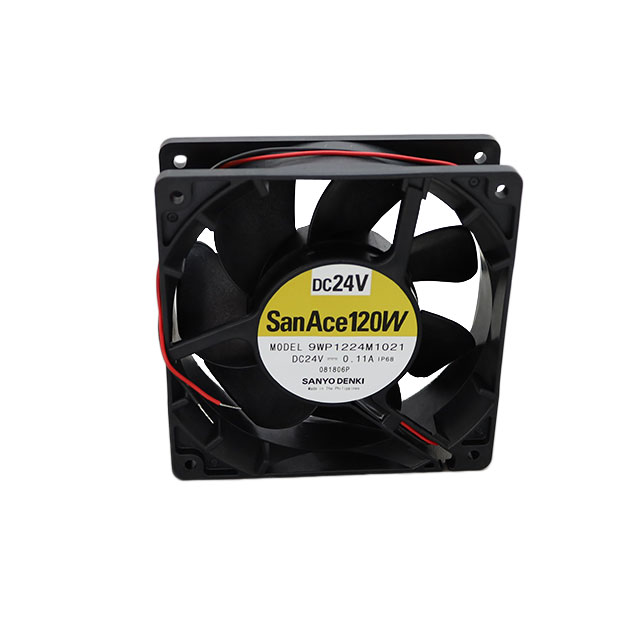

Sanyo Denki America Inc. 9WP1224M1021	Plastic	Plastic	120 mm	120 mm	2 Wire Leads	Ball	IP68 - Dust Tight Waterproof	Tubeaxial	38 mm	24 VDC	2.64 W

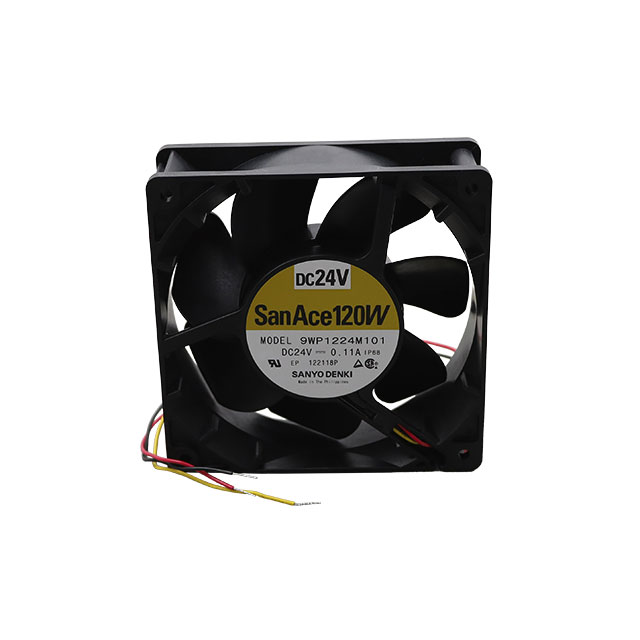

Sanyo Denki America Inc. 9WP1224M101	Plastic	Plastic	120 mm	120 mm	3 Wire Leads	Ball	IP68 - Dust Tight Waterproof	Tubeaxial	38 mm	24 VDC	2.64 W																Locked Rotor Protection Speed Sensor (Tach)

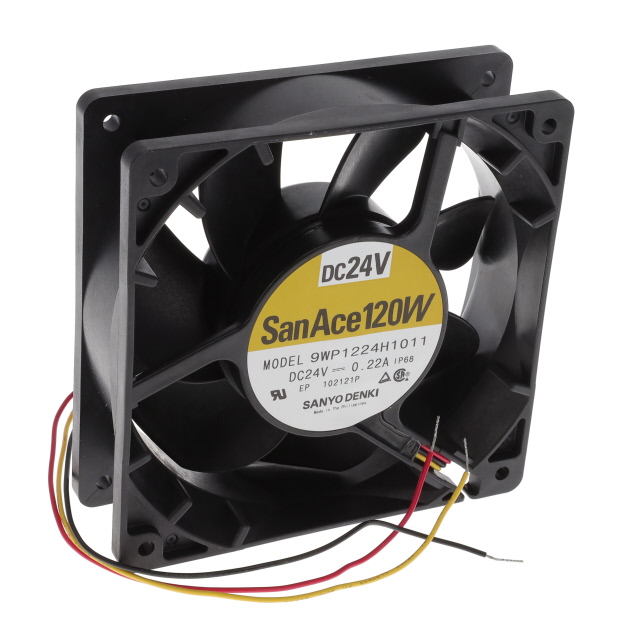

Sanyo Denki America Inc. 9WP1224H1011	Plastic	Plastic	120 mm	120 mm	3 Wire Leads	Ball	IP68 - Dust Tight Waterproof	Tubeaxial	38 mm	24 VDC	5.28 W	2.77 m³/min	99 CFM	0.22 A	27.6 VDC	14	40000 Hrs	39 dB(A)	2600 RPM	CSA TUV UL	70 °C	-20 ░C	0.794 lb	360.15 g	0.283 in H2O	70.5 Pa	Speed Sensor (Tach)
