953302 Series

Catalog

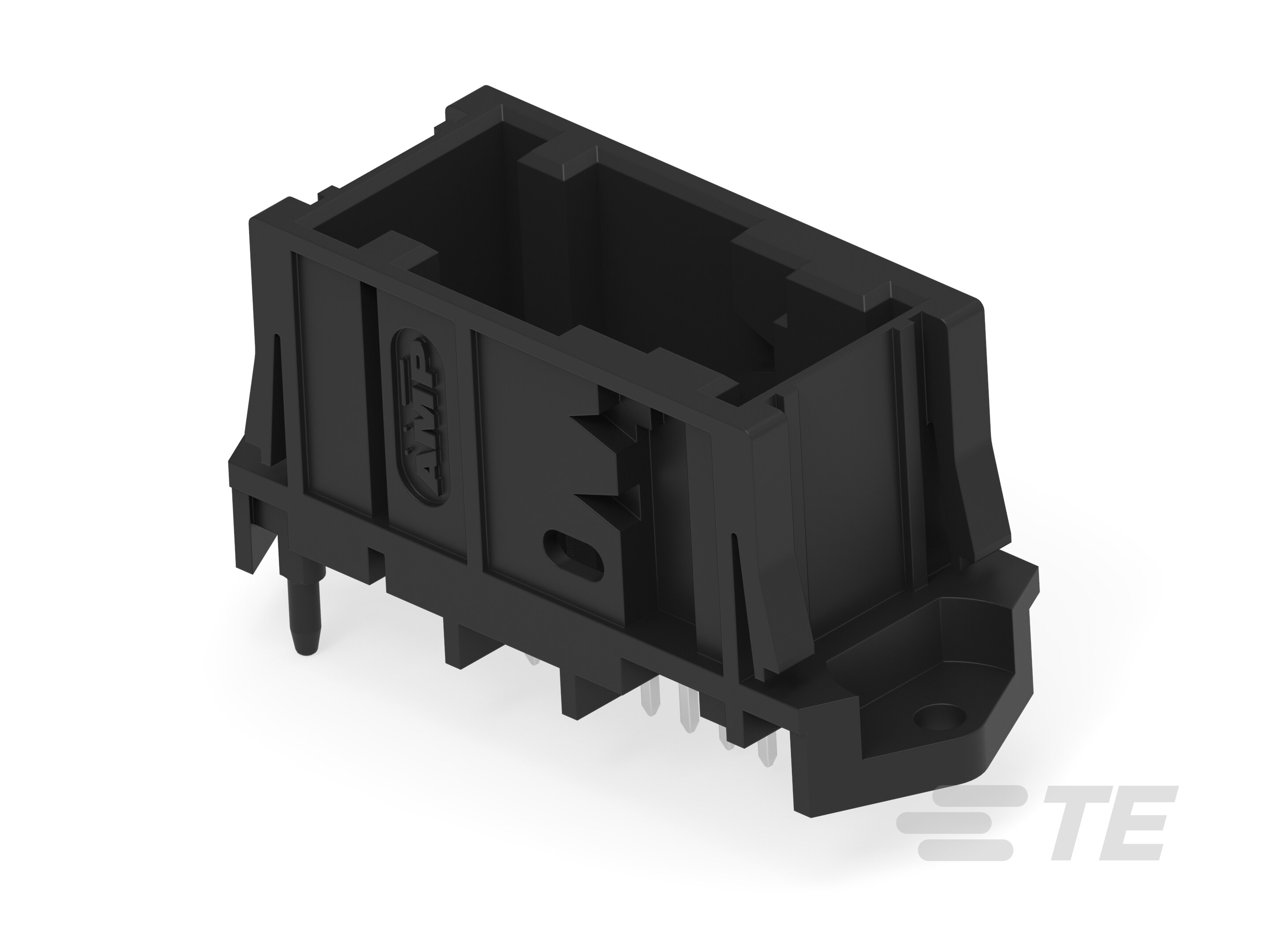

18POS MQS .63 HEADER 180DEG

Part	Contact Type	Insulation Color	Features	Fastening Type	Termination	Insulation Material	Contact Shape	Contact Material	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Mounting Type	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Connector Type	Material Flammability Rating	Shrouding	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 953302-1	Male Pin	Black	Guide Pin	Push-Pull	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Circular	Copper Alloy	All	0.138 in	3.5 mm	0.1 in	2.54 mm	2	0.1 "	2.54 mm	Tin	Panel Mount Right Angle Through Hole	0.799 in	20.3 mm	12 VDC	Header	UL94 V-0	Shrouded - 4 Wall	18	85 °C	-40 C
