IL-G-3P Series

Catalog

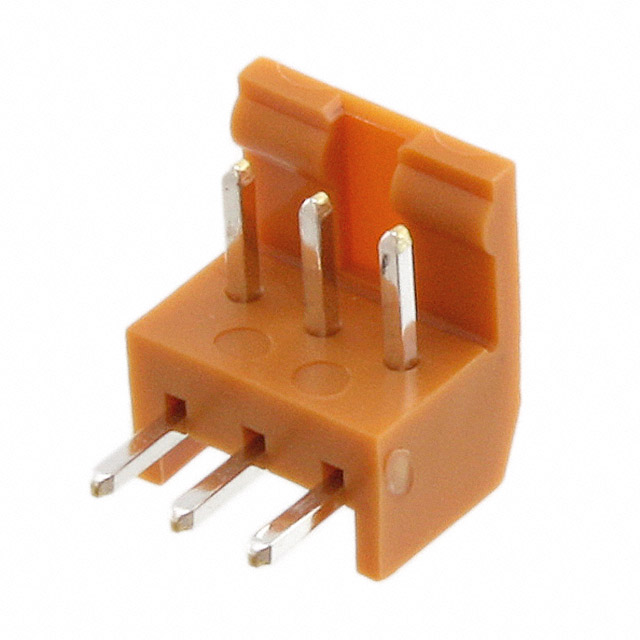

CONN HEADER R/A 3POS 2.5MM

Part	Termination	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Shape	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Rows	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Style	Connector Type	Contact Finish - Post
JAE Electronics IL-G-3P-S3L2-SA-1	Solder	Friction Lock	4 mm	0.157 in	All	Square	UL94 V-0	0.236 "	6 mm	3 A	0.138 in	3.5 mm	1	Shrouded - 1 Wall	3.9 µin	0.099 µm	Brass	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Right Angle Through Hole	Brown	Male Pin	85 °C	-40 C	Gold	Board to Cable/Wire	Header
JAE Electronics IL-G-3P-S3L2-SA	Solder	Friction Lock	4 mm	0.157 in	All	Square	UL94 V-0	0.236 "	6 mm	3 A	0.138 in	3.5 mm	1	Shrouded - 1 Wall			Brass	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Right Angle Through Hole	Brown	Male Pin	85 °C	-40 C		Board to Cable/Wire	Header	Tin
JAE Electronics IL-G-3P-S3L2-SB		Friction Lock				Square	UL94 V-0			3 A			1	Shrouded - 1 Wall			Brass	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Right Angle Through Hole			85 °C	-40 C		Board to Cable/Wire	Header
