0153-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .236"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0153-1-15-01-30-14-04-0	-55 C	125 °C	9 mm	0.354 in	Beryllium Copper	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.146 in	3.71 mm	0.46 mm	0.018 in	Standard Tail	0.072 "	1.83 mm	1.45 mm	0.057 in	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0153-1-15-80-30-14-04-0	-55 C	125 °C	9 mm	0.354 in	Beryllium Copper	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.146 in	3.71 mm	0.46 mm	0.018 in	Standard Tail	0.072 "	1.83 mm	1.45 mm	0.057 in	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0153-1-15-15-30-14-04-0	-55 C	125 °C	9 mm	0.354 in	Beryllium Copper	Press-Fit					0.146 in	3.71 mm	0.46 mm	0.018 in	Standard Tail	0.072 "	1.83 mm	1.45 mm	0.057 in	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0153-1-15-80-30-84-04-0	-55 C	125 °C	9 mm	0.354 in	Beryllium Copper	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.146 in	3.71 mm	0.46 mm	0.018 in	Standard Tail	0.072 "	1.83 mm	1.45 mm	0.057 in	Tin	2.54 µm	100 µin

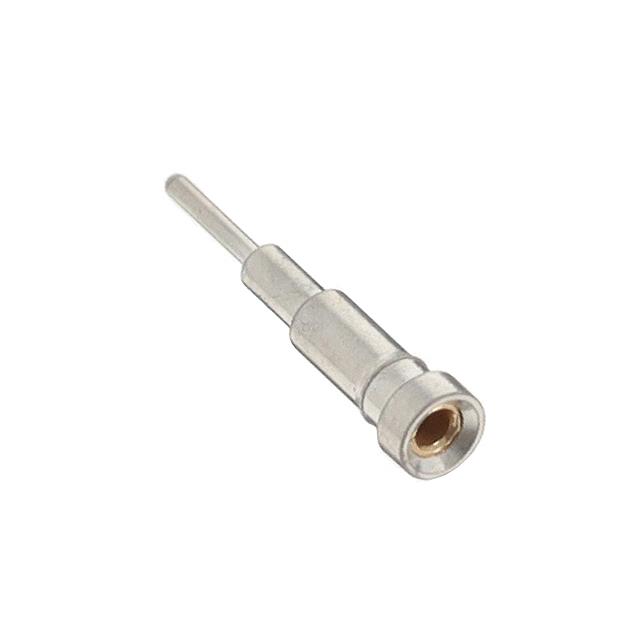

Mill-Max Manufacturing Corp. 0153-1-15-80-30-27-04-0	-55 C	125 °C	9 mm	0.354 in	Beryllium Copper	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.146 in	3.71 mm	0.46 mm	0.018 in	Standard Tail	0.072 "	1.83 mm	1.45 mm	0.057 in	Gold	0.76 Ám	30 Áin
