005030 Series

Manufacturer: Molex

Catalog

CONN RCPT 3POS 0.156 TIN PCB

Part	Contact Material	Applications	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Features	Contact Type	Voltage Rating	Contact Finish - Post	Number of Rows	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Fastening Type	Current Rating (Amps)	Style	Termination	Connector Type	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Positions	Shrouding	Insulation Height [z]	Insulation Height [z]	Note	Pitch	Pitch	Color	Contact Termination
Molex 0050304406	Phosphor Bronze	Automotive General Purpose Medical Telecommunications	Square	Nylon Polyamide (PA)	2.54 µm	100 µin	White	100 çin	2.54 çm	0.449 in	11.4 mm	All	Board Hooks	Female Socket	600 V	Tin	1	UL94 V-2	80 °C	-40 C	3.96 mm	0.156 in	Locking Ramp	4 A	Board to Board Cable	Solder	Receptacle Bottom Entry	0.16 in	4.06 mm	Through Hole
Molex 0050304416	Phosphor Bronze	Automotive General Purpose Medical Telecommunications	Square	Nylon Polyamide (PA)	2.54 µm	100 µin	White	100 çin	2.54 çm	0.449 in	11.4 mm	All	Board Hooks	Female Socket	600 V	Tin	1	UL94 V-2	80 °C	-40 C	3.96 mm	0.156 in	Locking Ramp	4 A	Board to Board Cable	Solder	Receptacle Bottom Entry	0.16 in	4.06 mm	Through Hole	12
Molex 0050304405	Phosphor Bronze	Automotive General Purpose Medical Telecommunications	Square	Nylon Polyamide (PA)	2.54 µm	100 µin	White	100 çin	2.54 çm	0.449 in	11.4 mm	All	Board Hooks	Female Socket	600 V	Tin	1	UL94 V-2	80 °C	-40 C	3.96 mm	0.156 in	Locking Ramp	4 A	Board to Board Cable	Solder	Receptacle Bottom Entry	0.16 in	4.06 mm	Through Hole	2
Molex 0050304417	Phosphor Bronze	Automotive General Purpose Medical Telecommunications	Square	Nylon Polyamide (PA)	2.54 µm	100 µin	White	100 çin	2.54 çm	0.449 in	11.4 mm	All	Board Hooks	Female Socket	600 V	Tin	1	UL94 V-2	80 °C	-40 C	3.96 mm	0.156 in	Locking Ramp	4 A	Board to Board Cable	Solder	Receptacle Bottom Entry	0.16 in	4.06 mm	Through Hole	13
Molex 0050304412	Phosphor Bronze	Automotive General Purpose Medical Telecommunications	Square	Nylon Polyamide (PA)	2.54 µm	100 µin	White	100 çin	2.54 çm	0.449 in	11.4 mm	All	Board Hooks	Female Socket	600 V	Tin	1	UL94 V-2	80 °C	-40 C	3.96 mm	0.156 in	Locking Ramp	4 A	Board to Board Cable	Solder	Receptacle Bottom Entry	0.16 in	4.06 mm	Through Hole	8
Molex 0050304408	Phosphor Bronze	Automotive General Purpose Medical Telecommunications	Square	Nylon Polyamide (PA)	2.54 µm	100 µin	White	100 çin	2.54 çm	0.449 in	11.4 mm	All	Board Hooks	Female Socket	600 V	Tin	1	UL94 V-2	80 °C	-40 C	3.96 mm	0.156 in	Locking Ramp	4 A	Board to Board Cable	Solder	Receptacle Bottom Entry	0.16 in	4.06 mm	Through Hole	5
Molex 0050304441
Molex 0050304413	Phosphor Bronze	Automotive General Purpose Medical Telecommunications	Square	Nylon Polyamide (PA)	2.54 µm	100 µin	White	100 çin	2.54 çm	0.449 in	11.4 mm	All	Board Hooks	Female Socket	600 V	Tin	1	UL94 V-2	80 °C	-40 C	3.96 mm	0.156 in	Locking Ramp	4 A	Board to Board Cable	Solder	Receptacle Bottom Entry	0.16 in	4.06 mm	Through Hole	9

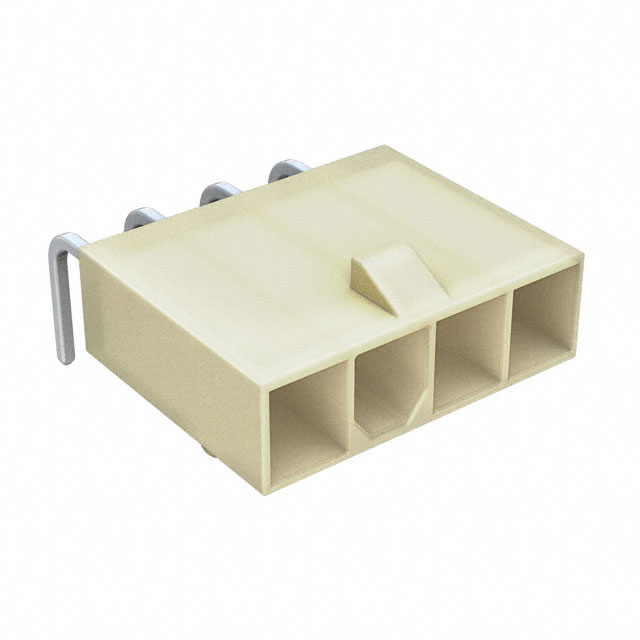

Molex 0050304469	Brass	General Purpose Industrial Telecommunications	Square	Nylon 6/6 Polyamide (PA66)	2.54 µm	100 µin	Natural	100 çin	2.54 çm			All	Mounting Flange	Male Pin		Tin	1	UL94 V-0			4.2 mm	0.165 in	Locking Ramp		Board to Cable/Wire	Solder	Header	0.138 in	3.5 mm	Right Angle Through Hole	4	Shrouded - 4 Wall	0.213 "	5.4 mm
Molex 0050304446				Nylon 6/6 Polyamide (PA66)										Male Pin			1						Locking Ramp				Plug			Panel Mount	5				Contacts Not Included	0.165 in	4.2 mm	Black	Crimp
