LD12W Series

Catalog

24~48V@220MA, 0~10V DIM TO 0%

Part	Mounting Type	Weight [custom]	Weight [custom]	Type	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Dimming [Min]	Dimming [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Approval Agency	Ratings	Termination Style	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Standard Number	Topology	Power (Watts)	Efficiency	Dimming	Voltage - Output

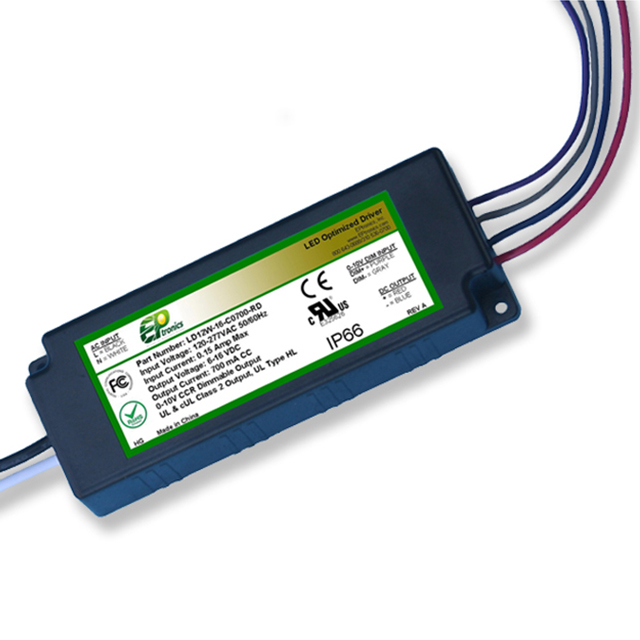

EPtronics, Inc. LD12W-48-C0220-RD	Chassis Mount	127.6 g	0.281 lb	Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in	0 V	10 V	60 °C	-40 C	305 VAC	48 V	24 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	220 mA	100 VAC	C22.2 UL 8750	AC DC Converter	10.6 W

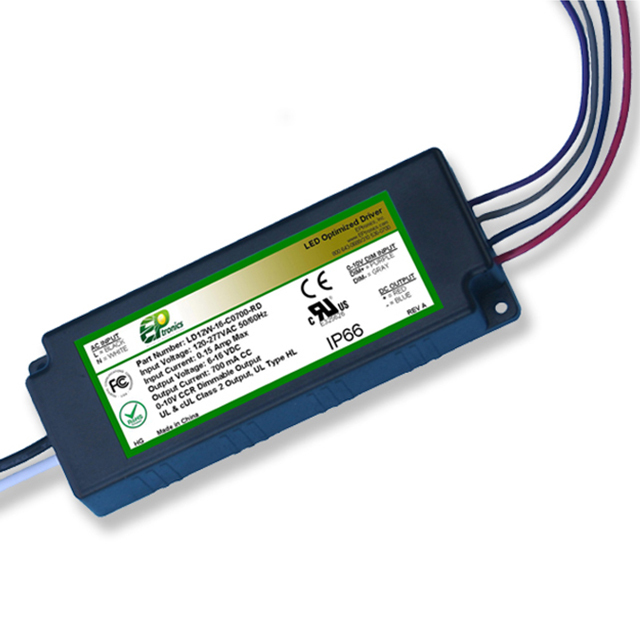

EPtronics, Inc. LD12W-48-C0250-RD	Chassis Mount	127.6 g	0.281 lb	Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in	0 V	10 V	60 °C	-40 C	305 VAC	48 V	24 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	250 mA	100 VAC	C22.2 UL 8750	AC DC Converter	12 W	84 %

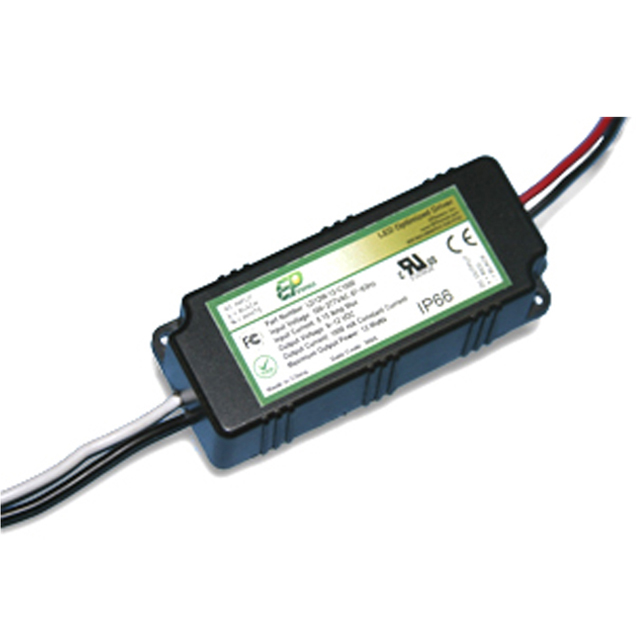

EPtronics, Inc. LD12W-12-C1000	Chassis Mount			Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in			50 °C	-30 ░C	305 VAC	12 V	6 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	1 A	100 VAC		AC DC Converter	12 W	77 %
EPtronics, Inc. LD12W-24	Chassis Mount	127.6 g	0.281 lb	Constant Voltage	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in			50 °C	-30 ░C	305 VAC			CE cURus FCC	IP66	Wire Leads	3750 VDC	1	500 mA	90 VAC	C22.2 UL 8750	AC DC Converter	12 W	78 %	Non-Dimmable	24 V
EPtronics, Inc. LD12W-16-C0800	Chassis Mount			Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in			50 °C	-30 ░C	305 VAC	16 V	8 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	0.8 A	100 VAC		AC DC Converter	13 W	78 %
EPtronics, Inc. LD12W-36-C0350	Chassis Mount			Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in			50 °C	-30 ░C	305 VAC	36 V	18 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	350 mA	100 VAC		AC DC Converter	13 W	80 %
EPtronics, Inc. LD12W-12	Chassis Mount	127.6 g	0.281 lb	Constant Voltage	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in			50 °C	-30 ░C	305 VAC			CE cURus FCC	IP66	Wire Leads	3750 VDC	1	1 A	90 VAC	C22.2 UL 8750	AC DC Converter	12 W	77 %	Non-Dimmable	12 V
EPtronics, Inc. LD12W-12-C1000-RD	Chassis Mount	127.6 g	0.281 lb	Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in	0 V	10 V	60 °C	-40 C	305 VAC	12 V	6 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	1 A	100 VAC	C22.2 UL 8750	AC DC Converter	12 W	78 %
EPtronics, Inc. LD12W-36-C0350-RD	Chassis Mount	127.6 g	0.281 lb	Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in	0 V	10 V	60 °C	-40 C	305 VAC	36 V	18 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	350 mA	100 VAC	C22.2 UL 8750	AC DC Converter	12.6 W	81 %
EPtronics, Inc. LD12W-16-C0700	Chassis Mount			Constant Current	OCP OVP SCP	3.35 in	0.91 in	85.1 mm	36.1 mm	23.1 mm	1.42 in			50 °C	-30 ░C	305 VAC	16 V	8 V	CE cURus FCC	IP66	Wire Leads	3750 VDC	1	700 mA	100 VAC		AC DC Converter	11 W	78 %
