ACPL-5 Series

Catalog

HIGH SPEED OPTOCOUPLERS 10MBD 2CH 1500VDC HERMETIC OPTOCOUPLER

Part	Common Mode Transient Immunity (Min) [Min]	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max]	Supplier Device Package	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Voltage - Isolation	Number of Channels	Current - Output / Channel	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Output Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Voltage - Output (Max) [Max]	Turn On / Turn Off Time (Typ)	Current Transfer Ratio (Min)	Number of Channels [custom]

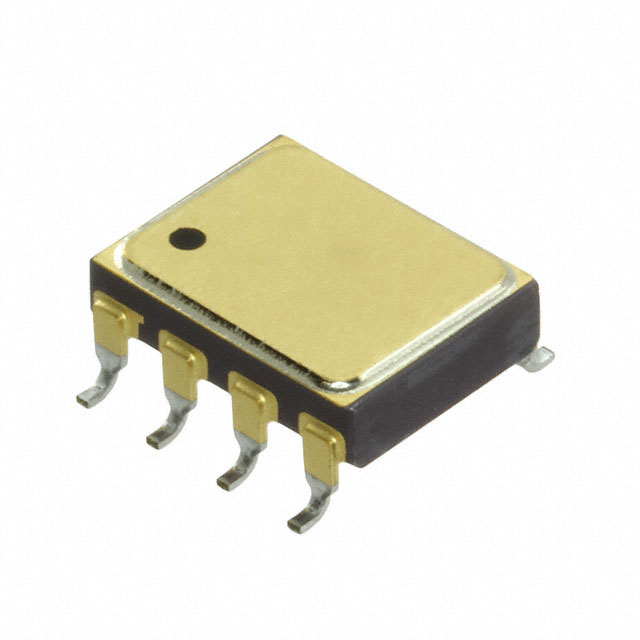

Broadcom Limited ACPL-563KL-300	1 kV/µs	Surface Mount	100 ns	8-DIP Gull Wing	2	0	8 ns 20 ns	1.55 V	20 mA	1.5 kV	2	25 mA	-55 C	125 °C	DC	Open Collector Schottky Clamped	8-CSMD Gull Wing	3.6 V	3 V	10 Mbps
Broadcom Limited ACPL-5731L-100		Surface Mount		8-DIP Butt Joint				1.4 V	10 mA	1.5 kV	2	40 mA	-55 C	125 °C	DC	Darlington	8-SMD Butt Joint				20 V	2 µs 6 µs	200 %
Broadcom Limited ACPL-5600L	1 kV/µs	Through Hole	100 ns	8-DIP	1	0	8 ns 20 ns	1.55 V	20 mA	1.5 kV		25 mA	-55 C	125 °C	DC	Open Collector Schottky Clamped	8-DIP (0.300" 7.62mm)	3.6 V	3 V	10 Mbps				1
Broadcom Limited ACPL-5631L	1 kV/µs	Through Hole	100 ns	8-DIP	2	0	8 ns 20 ns	1.55 V	20 mA	1.5 kV	2	25 mA	-55 C	125 °C	DC	Open Collector Schottky Clamped	8-CDIP (0.300" 7.62mm)	3.6 V	3 V	10 Mbps
