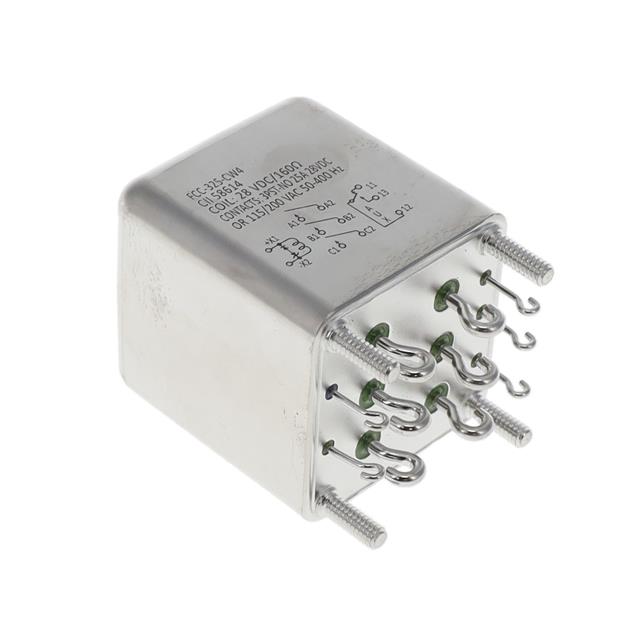

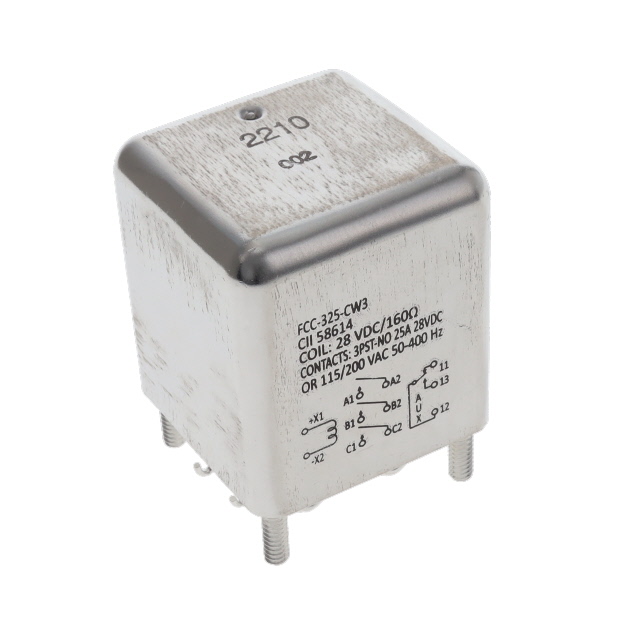

FCC-325 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GEN PURPOSE 3PST 25A 28V
| Part | Must Release Voltage | Termination Style | Coil Type | Must Operate Voltage | Relay Type | Release Time | Seal Rating | Contact Rating (Current) | Coil Voltage | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Coil Resistance | Coil Current | Mounting Type | Contact Material | Features | Contact Form | Contact Form | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 1.5 VDC | Solder Hook | Non Latching | 18 VDC | General Purpose | 10 ms | Sealed - Hermetically | 25 A | 28 VDC | 700 W 2875 VA | 125 °C | -70 °C | 20 ms | 160 Ohms | 175 mA | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Diode | DM | 3PST-NO | 3 Form X |
 TE Connectivity Aerospace, Defense and Marine | 1.5 VDC | Solder Hook | Non Latching | 18 VDC | General Purpose | 10 ms | Sealed - Hermetically | 25 A | 28 VDC | 700 W 2875 VA | 125 °C | -70 °C | 20 ms | 160 Ohms | 175 mA | Chassis Mount | Silver Cadmium Oxide (AgCdO) | DM | 3PST-NO | 3 Form X |
