3-1825010 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

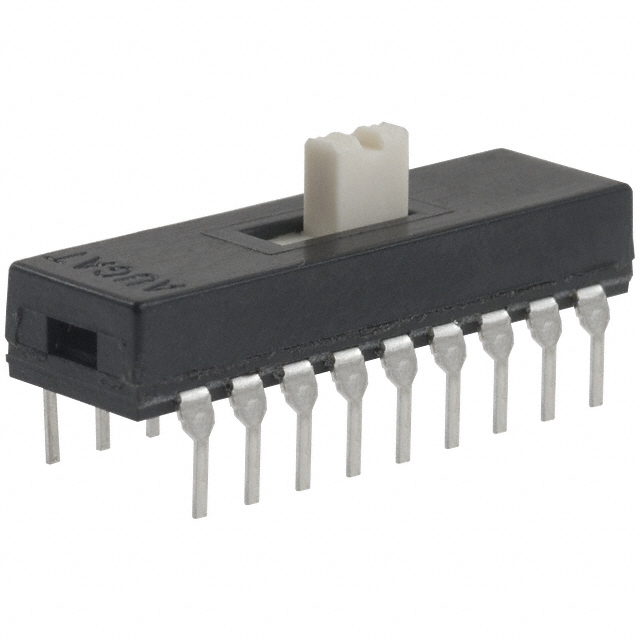

SWITCH SLIDE 4P3T 300MA 115V
| Part | Circuit | Voltage Rating - AC | Contact Finish | Termination Style | Electrical Life | Operating Force | Mounting Type | Mechanical Life | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Material | Switch Travel | Actuator Type | Actuator Length [x] | Contact Material | Current Rating (Amps) | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 4P3T | 115 V | Silver | Gull Wing | 15000 Cycles | 950 gf | Surface Mount | 15000 Cycles | On-On-On | -40 °C | 80 C | Nylon 4/6 Polyamide (PA46) | 2.67 mm | Standard | 2.79 mm | Copper Alloy | 300 mA | Shorting |
 TE Connectivity Raychem Cable Protection | 6PDT | 115 V | Silver | PC Pin | 15000 Cycles | 950 gf | Through Hole | 15000 Cycles | On-On | -40 °C | 80 C | Nylon 4/6 Polyamide (PA46) | 2.79 mm | Standard | 2.79 mm | Copper Alloy | 300 mA | Shorting |
