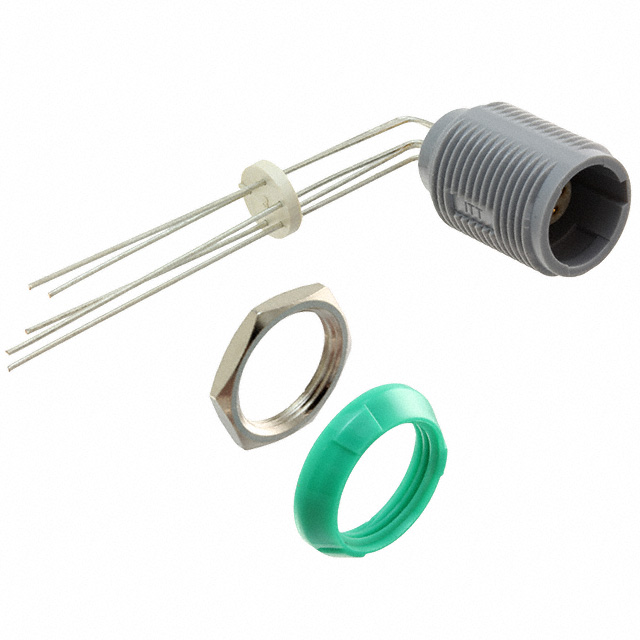

PLB3G Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR
| Part | Ingress Protection | Insert Material | Color | Mounting Type | Mounting Feature | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Contact Material | Shielding | Shell Material | Orientation | Number of Positions | Applications | Current Rating (Amps) | Termination | Orientation [custom] | Orientation [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | E | 7 | Industrial Medical Testing Equipment & Measurement | 5 A | Solder | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray Green | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | 2 | Industrial Medical Testing Equipment & Measurement | 10 A | Solder | J | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Blue Gray | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | C | 9 | Industrial Medical Testing Equipment & Measurement | 3 A | Solder | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray Red | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | H | 9 | Industrial Medical Testing Equipment & Measurement | 3 A | Solder | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray Green | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | C | 14 | Industrial Medical Testing Equipment & Measurement | 2 A | Solder | ||
 ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray Green | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | 5 | Industrial Medical Testing Equipment & Measurement | 7 A | Solder | 0 ° | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Blue Gray | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | 8 | Industrial Medical Testing Equipment & Measurement | 5 A | Solder | J | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Blue Gray | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | 14 | Industrial Medical Testing Equipment & Measurement | 2 A | Solder | J | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray White | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | A | 5 | Industrial Medical Testing Equipment & Measurement | 7 A | Solder | ||
ITT Cannon, LLC | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Blue Gray | Panel Mount Right Angle Through Hole | Bulkhead - Front or Rear Side Nut | Gold | 0.51 µm | 20 µin | Latch Lock Push-Pull | Receptacle Female Sockets | 150 °C | -50 °C | Plastic | Copper Alloy | Unshielded | Polysulfone (PSU) | E | 7 | Industrial Medical Testing Equipment & Measurement | 5 A | Solder |
