CDR Series

Manufacturer: Adam Tech

Catalog

HEADERS & WIRE HOUSINGS HEADER RA TH GOLD 8POS .1" SINGL

Part	Fastening Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post	Shrouding	Style	Insulation Material	Voltage Rating	Connector Type	Contact Finish - Mating	Number of Rows	Insulation Color	Number of Positions	Contact Type	Contact Finish - Post	Number of Positions Loaded	Termination	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Mounting Type	Contact Material	Features	Insulation Height	Insulation Height	Contact Length - Post
Adam Tech CDR-08-GR	Latch Holder	Square	-40 C	105 ░C	0.1 "	2.54 mm	Flash	3 A	0.134 "	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	Header	Gold	1	Black	8	Male Pin	Gold	All	Solder	0.2 in	5.08 mm	UL94 V-0	Right Angle Through Hole	Brass

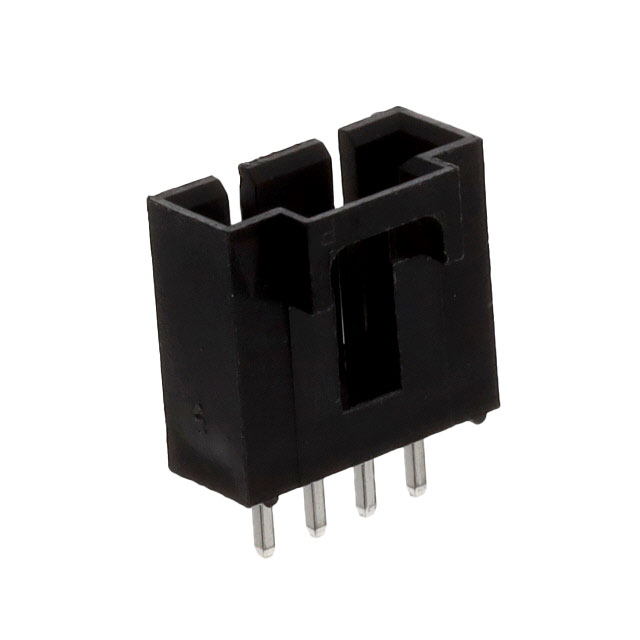

Adam Tech CDR-04-TS	Latch Holder	Square	-40 C	105 ░C	0.1 "	2.54 mm		3 A		3.35 mm	Unshrouded	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	Header		1	Black	4	Male Pin	Tin	All	Solder			UL94 V-0	Through Hole	Copper Alloy	Polarizing Key	11.5 mm	0.453 in	0.132 in
Adam Tech CDR-04-TR	Latch Holder	Square	-40 C	105 ░C	0.1 "	2.54 mm		3 A			Unshrouded	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	Header		1	Black	4	Male Pin	Tin	All	Solder	0.2 in	5.08 mm	UL94 V-0	Right Angle Through Hole	Brass	Polarizing Key
Adam Tech CDR-09-TR	Latch Holder	Square	-40 C	105 ░C	0.1 "	2.54 mm		3 A	0.134 "	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	Header		1	Black	9	Male Pin	Tin	All	Solder	0.2 in	5.08 mm	UL94 V-0	Right Angle Through Hole	Brass
