ASDXRRX005 Series

Catalog

SENSOR 5PSIG 0.09" 12BIT

Part	Termination Style	Pressure Type	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Port Size	Port Size [x]	Port Size [x]	Output Type	Port Style	Accuracy	Output	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions ASDXRRX005PG7A5	PC Pin	Vented Gauge	Board Mount	4.75 V	5.25 V	-20 C	105 ░C	Through Hole	8-DIP Module	34.47 kPa	5 PSI	10 PSI	68.95 kPa	Temperature Compensated	Dual Male Tube	0.09 "	2.31 mm	I2C	Barbless	2 %	12 b

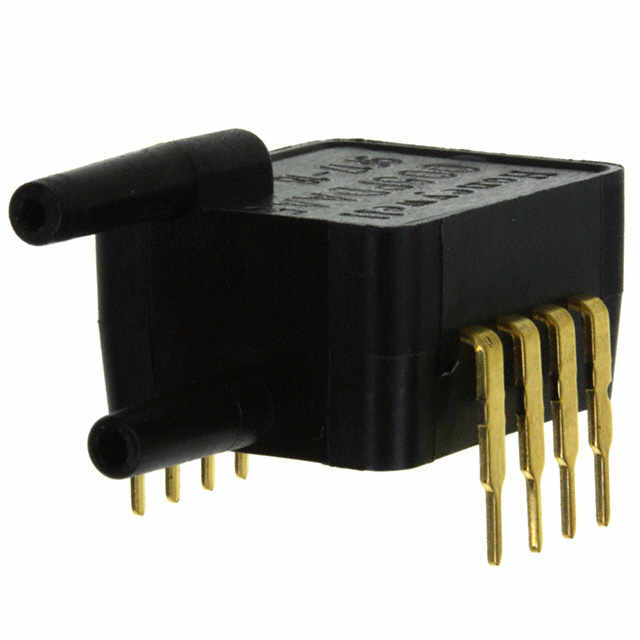

Honeywell Sensing and Productivity Solutions ASDXRRX005PDAA5	PC Pin	Differential	Board Mount	4.75 V	5.25 V	-20 C	105 ░C	Through Hole	8-DIP Module	34.47 kPa	5 PSI			Temperature Compensated	Dual Male Tube	0.09 "	2.31 mm	Analog Voltage	Barbless	2 %		0.5 V	4.5 V	68.95 kPa	10 PSI

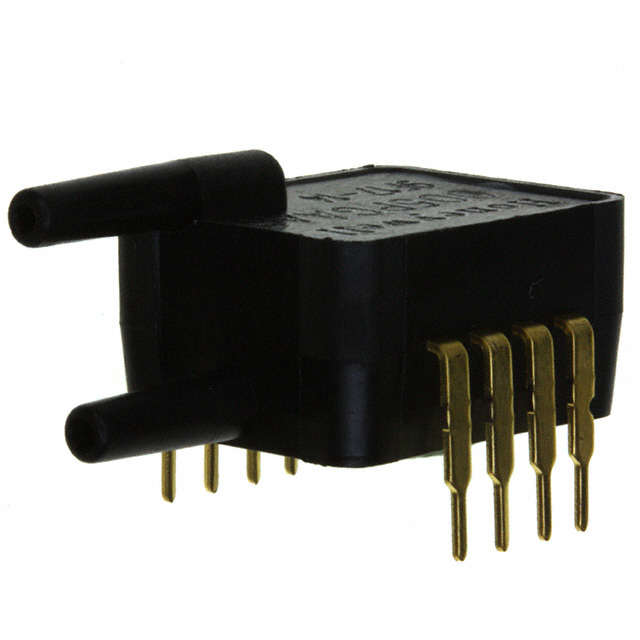

Honeywell Sensing and Productivity Solutions ASDXRRX005PGAA5	PC Pin	Vented Gauge	Board Mount	4.75 V	5.25 V	-20 C	105 ░C	Through Hole	8-DIP Module	34.47 kPa	5 PSI	10 PSI	68.95 kPa	Temperature Compensated	Dual Male Tube	0.09 "	2.31 mm	Analog Voltage	Barbless	2 %		0.5 V	4.5 V
