BD9G500UEFJ-LA Series

7V to 76V Input, 5A Integrated High-Side MOSFET, Single Buck DC/DC Converter

Catalog

7V to 76V Input, 5A Integrated High-Side MOSFET, Single Buck DC/DC Converter

Part	Supplier Device Package	Frequency - Switching [Min]	Frequency - Switching [Max]	Mounting Type	Output Type	Voltage - Input (Max) [Max]	Topology	Current - Output	Voltage - Output (Max) [Max]	Number of Outputs	Package / Case	Package / Case	Package / Case	Synchronous Rectifier	Voltage - Input (Min) [Min]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Function	Voltage - Output (Min/Fixed)
Rohm Semiconductor BD9G500UEFJ-LAE2	8-HTSOP-J	100 kHz	650 kHz	Surface Mount	Adjustable	76 V	Buck	5 A	73.72 V	1	0.154 in	8-SOIC	3.9 mm		7 V	Positive	125 °C	-40 °C	Step-Down	1 V

Catalog

7V to 76V Input, 5A Integrated High-Side MOSFET, Single Buck DC/DC Converter

Key Features

• Long Time Support Product for Industrial Applications., Wide Input Voltage Range, Integrated High-Side MOSFET, Current Mode Control, Adjustable Frequency, Soft Start Function, Over Current Protection (OCP), Under Voltage Lockout (UVLO), Thermal Shutdown Protection (TSD), Over Voltage Protection (OVP), HTSOP-J8 package

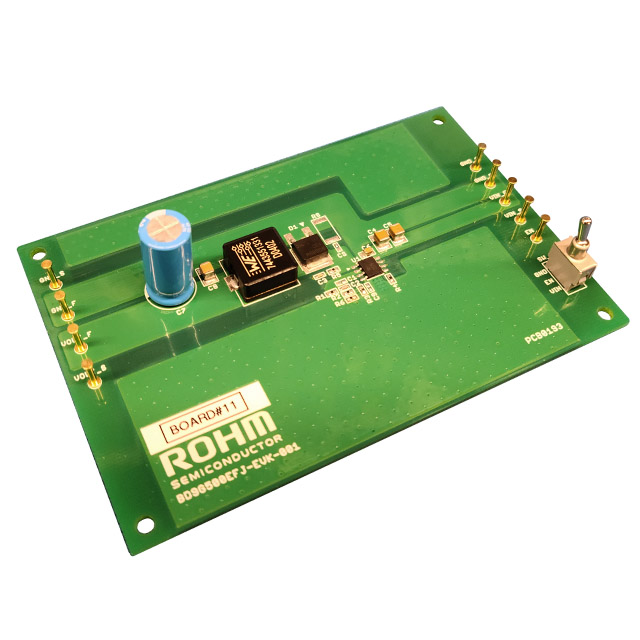

Description

This is the product guarantees long time support in industrial market. BD9G500UEFJ-LA is buck DC/DC converter with built-in low on-resistance High-Side power MOSFET. It is capable of providing current of up to 5A. Current mode architecture provides fast transient response and simple phase compensation setup. The operating frequency is adjustable from 100kHz to 650kHz.This IC uses different production line against series model BD9G500EFJ-LA for the purpose of improving production efficiency. We recommend using this IC for your new development. Electric characteristics noted in Datasheet does not differ between Production Line. In addition, the data of BD9G500EFJ-LA is disclosed for documents and design models unless otherwise specified.
