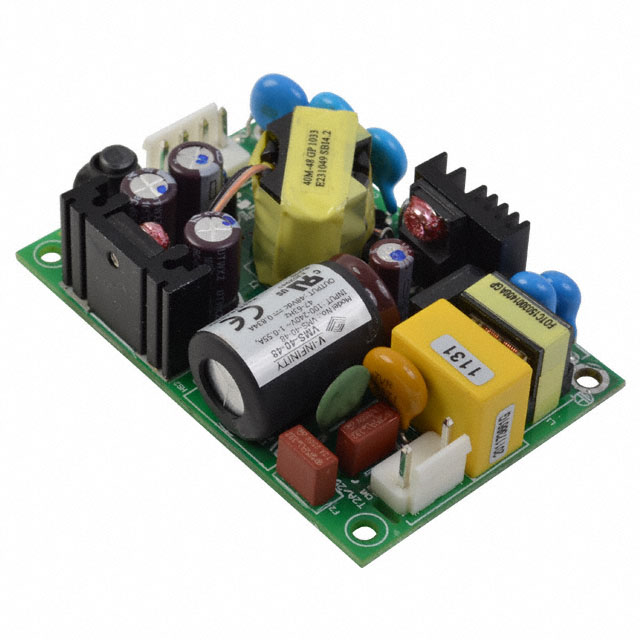

VMS-40 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 36V 40W

Part	Type	Mounting Type	Number of Outputs	Operating Temperature [Max]	Efficiency	Current - Output 1	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Voltage - Isolation	Features	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Voltage - Output 1 [custom]	Voltage - Output 1
CUI Inc. VMS-40-36	Open Frame	Chassis Mount	1	70 °C	88 %	1.11 A	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL	36 V
CUI Inc. VMS-40-15	Open Frame	Chassis Mount	1	70 °C	87 %	2.67 A	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL		15 V
CUI Inc. VMS-40-12	Open Frame	Chassis Mount	1	70 °C	86 %	3.34 A	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL		12 V
CUI Inc. VMS-40-5	Open Frame	Chassis Mount	1	70 °C	80 %	6 A	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL		5 V
CUI Inc. VMS-40-24	Open Frame	Chassis Mount	1	70 °C	88 %	1.67 A	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL		24 V
CUI Inc. VMS-40-9	Open Frame	Chassis Mount	1	70 °C	88 %	4.45 A	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL		9 V
CUI Inc. VMS-40-48	Open Frame	Chassis Mount	1	70 °C	88 %	834 mA	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL		48 V
CUI Inc. VMS-40-3.3	Open Frame	Chassis Mount	1	70 °C	76 %	6 A	40 W	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	5656 V	Universal Input	Medical	264 VAC	90 VAC	CB Scheme EN IEC SIQ TUV UL		3.3 V
