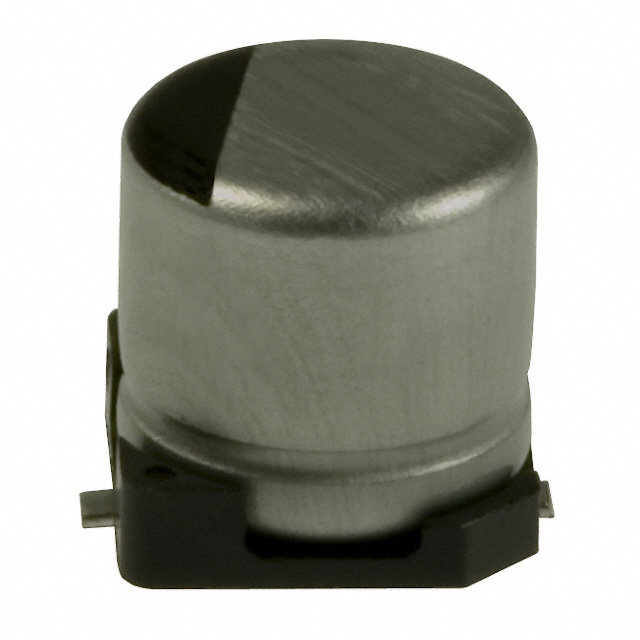

ECE-V1 Series

Manufacturer: Panasonic Electronic Components

Catalog

Catalog

CAP ALUM 4.7UF 20% 50V SMD

...

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Mounting Type	Polarization	Package / Case	Applications	Tolerance	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max)
Panasonic Electronic Components ECE-V1HA4R7NP	0.248 "	6.3 mm	4.7 µF	85 °C	-40 C	31 mA	5.4 mm	0.213 in	2000 Hrs	Surface Mount	Bi-Polar	Radial Can - SMD	General Purpose	20 %	50 VDC	0.26 in	6.6 mm	6.6 mm	0.26 in
Panasonic Electronic Components ECE-V1HSR47SR	0.118 in	3 mm	0.47 µF	85 °C	-40 C	5 mA	5.4 mm	0.213 in	1000 Hrs	Surface Mount	Polar	Radial Can - SMD	General Purpose	20 %	50 VDC		0.13 in 3.3 mm	0.13 in 3.3 mm
Panasonic Electronic Components ECE-V1HS010SR	0.118 in	3 mm	1 µF	85 °C	-40 C	8 mA	5.4 mm	0.213 in	1000 Hrs	Surface Mount	Polar	Radial Can - SMD	General Purpose	20 %	50 VDC		0.13 in 3.3 mm	0.13 in 3.3 mm
Panasonic Electronic Components ECE-V1CA220SR	0.197 in	5 mm	22 µF	85 °C	-40 C	39 mA	5.4 mm	0.213 in	2000 Hrs	Surface Mount	Polar	Radial Can - SMD	General Purpose	20 %	16 V		0.209 in 5.3 mm	0.209 in 5.3 mm
Panasonic Electronic Components ECE-V1VA100NP	0.248 "	6.3 mm	10 µF	85 °C	-40 C	30 mA	5.4 mm	0.213 in	2000 Hrs	Surface Mount	Bi-Polar	Radial Can - SMD	General Purpose	20 %	35 V	0.26 in	6.6 mm	6.6 mm	0.26 in
Panasonic Electronic Components ECE-V1CA221XP	0.248 "	6.3 mm	220 µF	85 °C	-40 C	162 mA		0.303 in	2000 Hrs	Surface Mount	Polar	Radial Can - SMD	General Purpose	20 %	16 V	0.26 in	6.6 mm	6.6 mm	0.26 in	7.7 mm

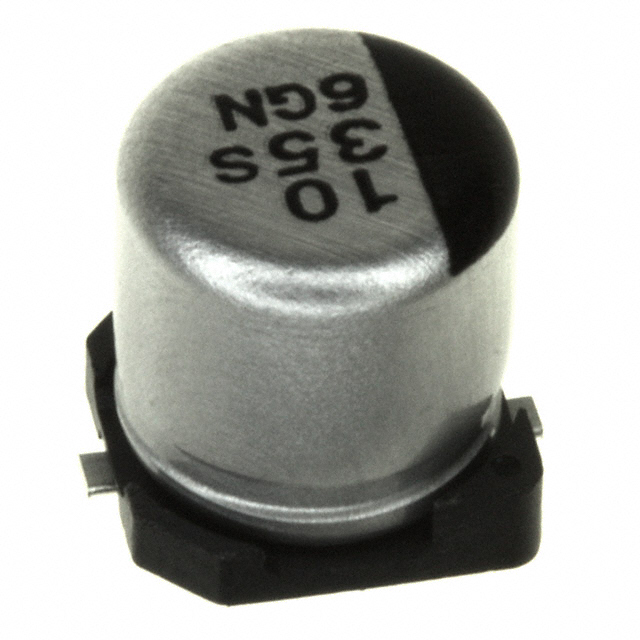

Panasonic Electronic Components ECE-V1VA100SR	0.197 in	5 mm	10 µF	85 °C	-40 C	30 mA	5.4 mm	0.213 in	2000 Hrs	Surface Mount	Polar	Radial Can - SMD	General Purpose	20 %	35 V		0.209 in 5.3 mm	0.209 in 5.3 mm
Panasonic Electronic Components ECE-V1HVR15SR			0.15 ÁF	85 °C	-40 C				1000 Hrs	Surface Mount		Radial Can - SMD	General Purpose	20 %	50 VDC
Panasonic Electronic Components ECE-V1HA220UP	0.248 "	6.3 mm	22 µF	85 °C	-40 C	60 mA	5.7 mm	0.224 in	1000 Hrs	Surface Mount	Polar	Radial Can - SMD	General Purpose	20 %	50 VDC	0.26 in	6.6 mm	6.6 mm	0.26 in
Panasonic Electronic Components ECE-V1VA100WR	0.157 in	4 mm	10 µF	85 °C	-40 C	22 mA	5.4 mm	0.213 in	1000 Hrs	Surface Mount	Polar	Radial Can - SMD	General Purpose	20 %	35 V	0.169 "	4.3 mm	4.3 mm	0.169 in
