GRSV-4011 Series

Catalog

SWITCH ROCKER SPST 8A 125V

Part	Current Rating (Amps)	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Termination Style	Actuator Type	Color - Actuator/Cap	Mounting Type	Circuit	Switch Function	Electrical Life	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Features

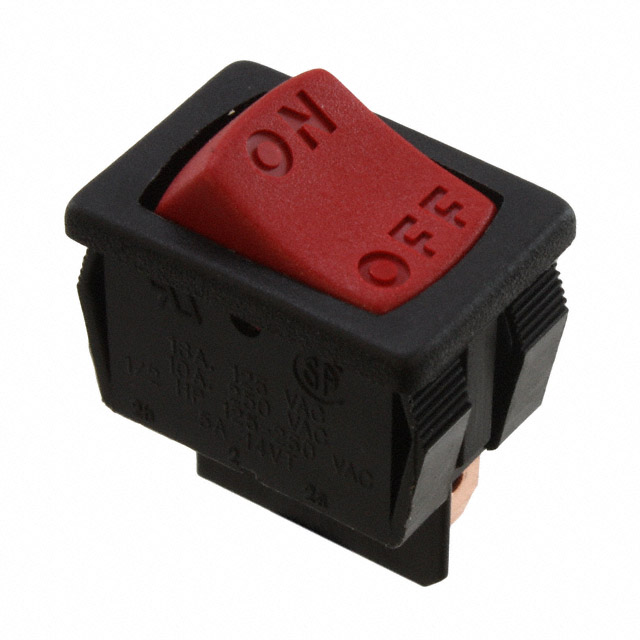

CW Industries GRSV-4011-0137	8 A	ON OFF	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	Red	Panel Mount Snap-In	SPST	On-Off

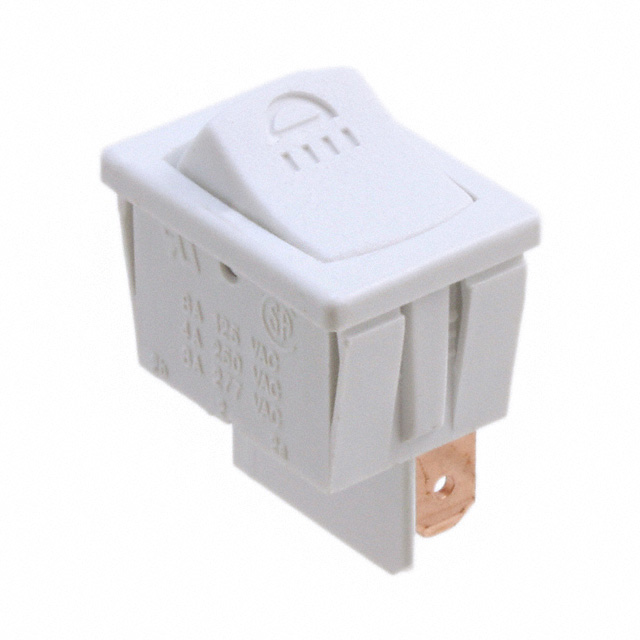

CW Industries GRSV-4011-0135	8 A	Light Bulb	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	White	Panel Mount Snap-In	SPST	On-Off

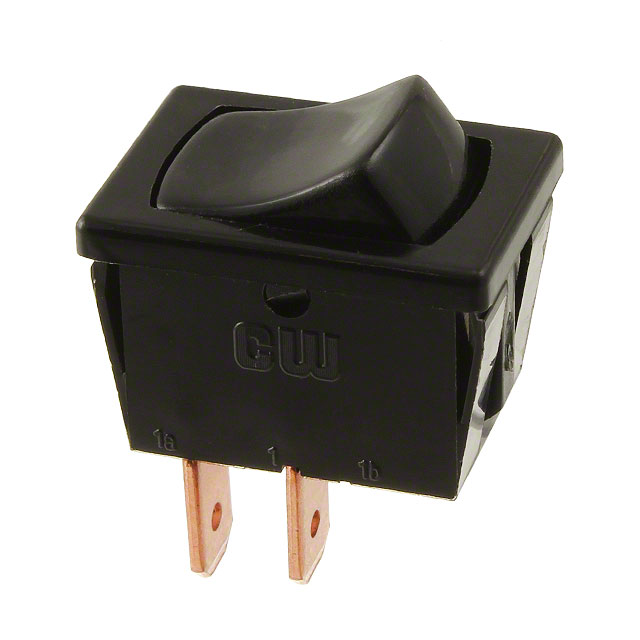

CW Industries GRSV-4011B-0027	5 A 13 A	No Marking	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST-NO	Off-Mom	10000 Cycles	30000 Steps	-20 ░C	105 ░C	14 V

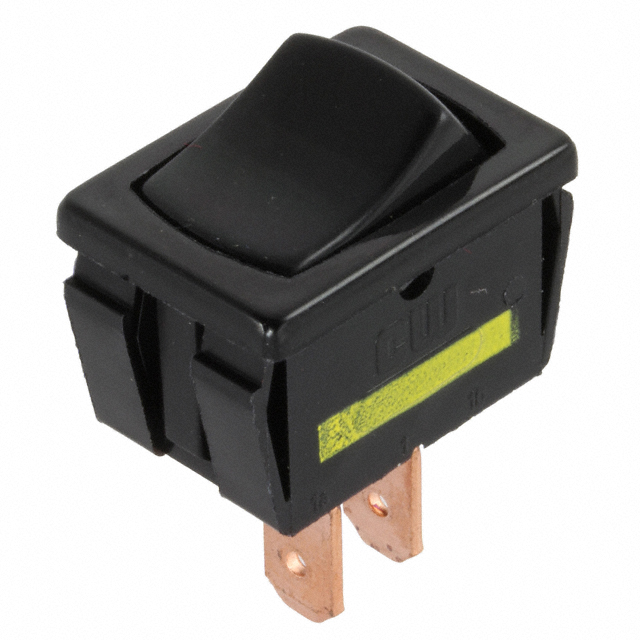

CW Industries GRSV-4011B-0030	5 A 13 A	No Marking	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST-NO	Off-Mom	10000 Cycles	30000 Steps	-20 ░C	105 ░C	14 V

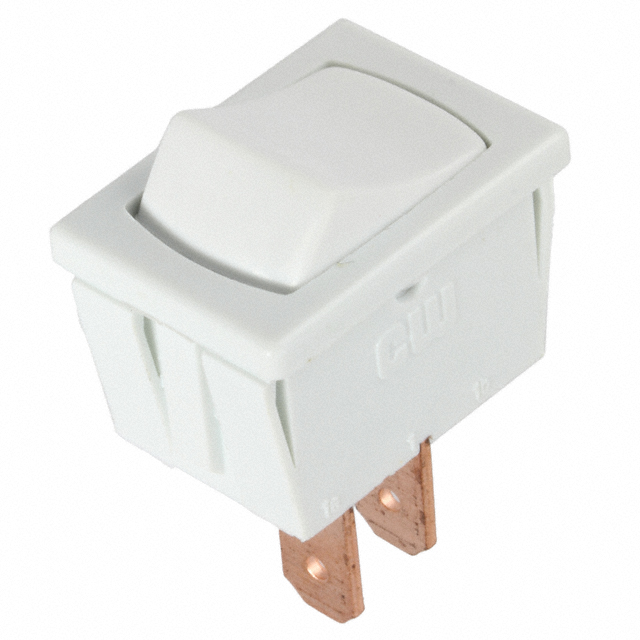

CW Industries GRSV-4011-0126	5 A 13 A	No Marking	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	White	Panel Mount Snap-In	SPST	On-Off	25000 Steps	100000 Cycles	-20 ░C	105 ░C	14 V

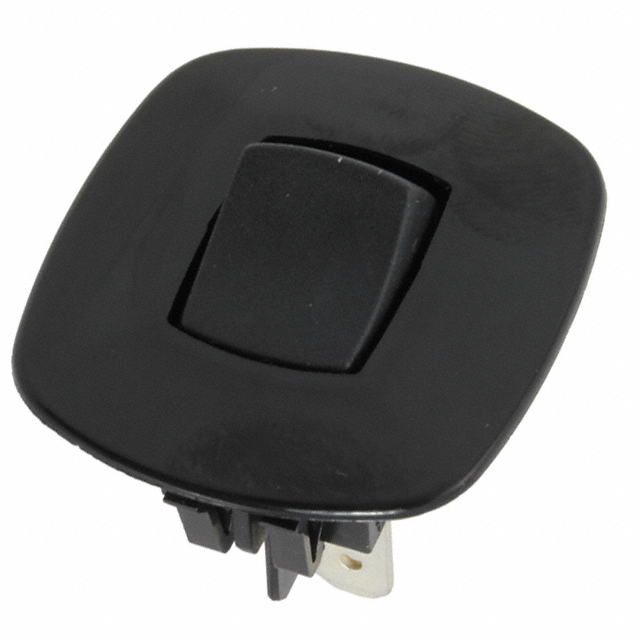

CW Industries GRSV-4011-0011	16 A	No Marking	12.9 mm	28.58 mm	125 V	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST	On-Off						Polarized Terminal Barriers

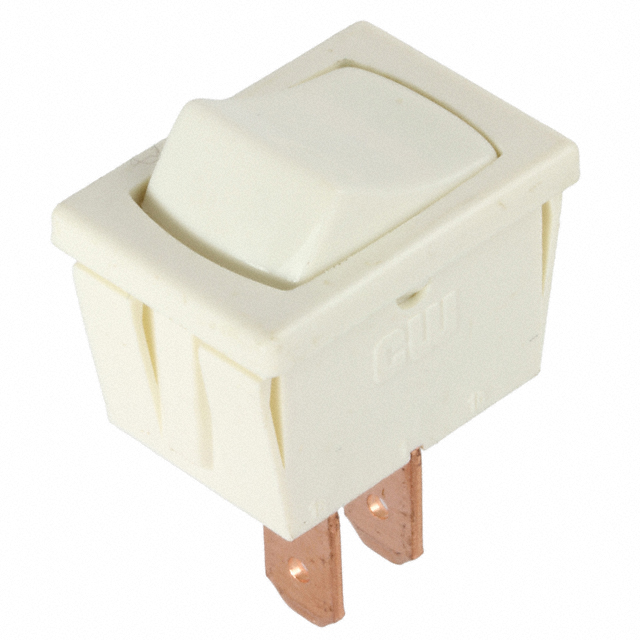

CW Industries GRSV-4011-0127	5 A 13 A	No Marking	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	Bisque	Panel Mount Snap-In	SPST	On-Off	25000 Steps	100000 Cycles	-20 ░C	105 ░C	14 V

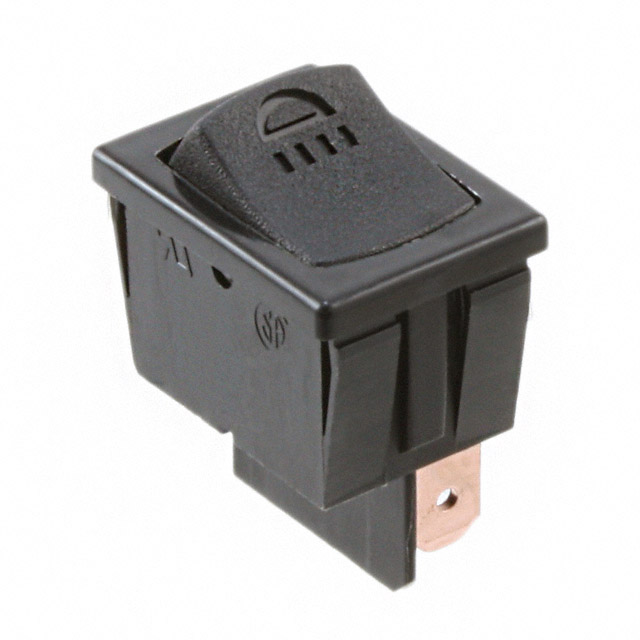

CW Industries GRSV-4011-0134	8 A	Light Bulb	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST	On-Off
CW Industries GRSV-4011-0133	8 A	No Marking	12.9 mm	19.2 mm	125 V	Quick Connect	Concave (Curved)	Bisque Brown-Gray	Panel Mount Snap-In	SPST	On-Off
