C1353AR Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

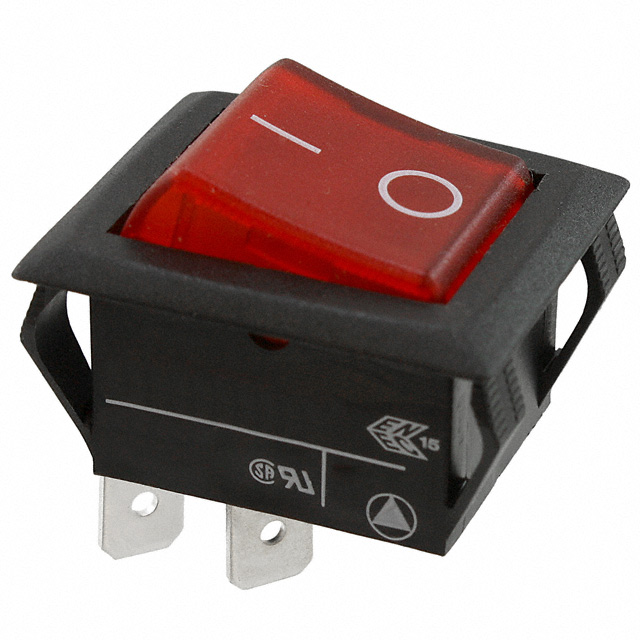

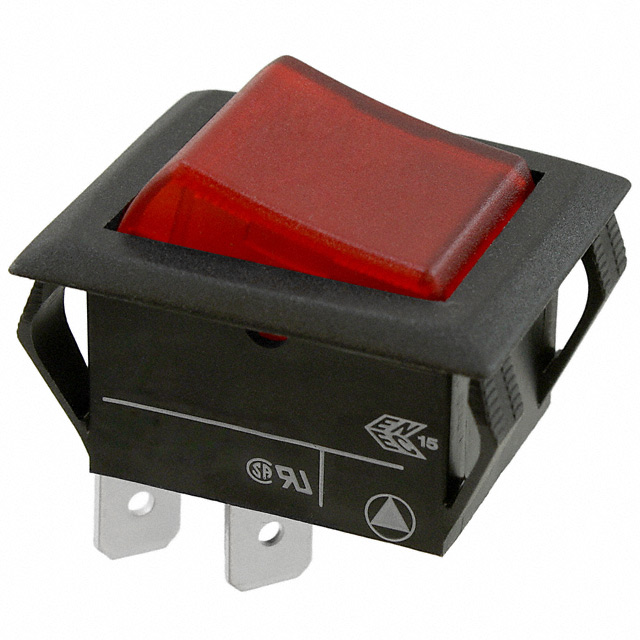

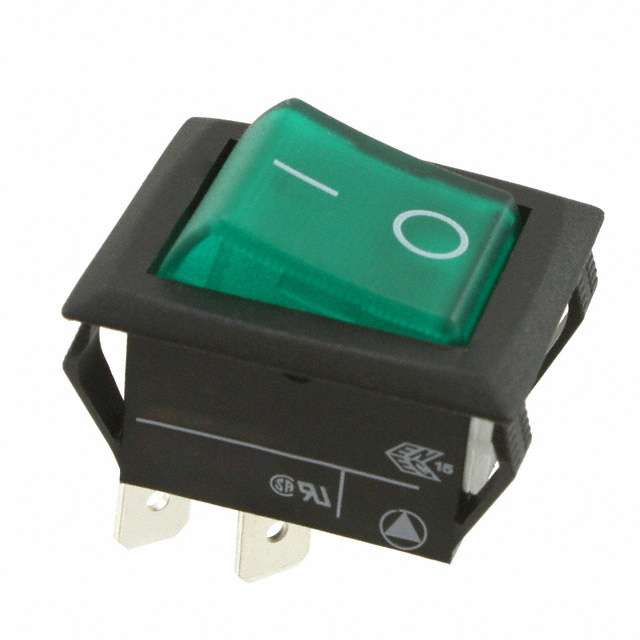

SWITCH ROCKER DPST-NO 20A 250V
| Part | Termination Style | Mounting Type | Voltage Rating - AC | Actuator Type | Features | Approval Agency | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Illumination Voltage (Nominal) | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Circuit | Voltage Rating - DC | Switch Function | Color - Actuator/Cap | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | Antimicrobial | CSA UL | 20 A | 28.5 mm | 25.4 mm | O - | 125 VAC | Neon | Green | DPST-NO | 24 V | On-Off | Green | |
 BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | Antimicrobial | CSA UL | 20 A | 28.5 mm | 25.4 mm | O - | 125 VAC | DPST-NO | 24 V | On-Off | Red | Neon Red | ||
 BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | CSA UL | 20 A | 28.5 mm | 25.4 mm | O I | 125 VAC | Neon | Green | DPST-NO | 24 V | On-Off | Green | ||
 BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | CSA UL | 20 A | 28.5 mm | 25.4 mm | O - | 250 VAC | DPST-NO | 24 V | On-Off | Red | Neon Red | |||
BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | CSA UL | 20 A | 28.5 mm | 25.4 mm | No Marking | 125 VAC | DPST-NO | 24 V | On-Off | Red | Neon Red | |||
BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | CSA UL | 20 A | 28.5 mm | 25.4 mm | O I | 125 VAC | DPST-NO | 24 V | On-Off | Red | Neon Red | |||
BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | CSA UL | 20 A | 28.5 mm | 25.4 mm | O - | 125 VAC | DPST-NO | 24 V | On-Off | Red | Neon Red | |||
 BULGIN LIMITED | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 250 V | Concave (Curved) - Illuminated | Antimicrobial | CSA UL | 20 A | 28.5 mm | 25.4 mm | No Marking | 125 VAC | DPST-NO | 24 V | On-Off | Red | Neon Red |
