45450/3 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

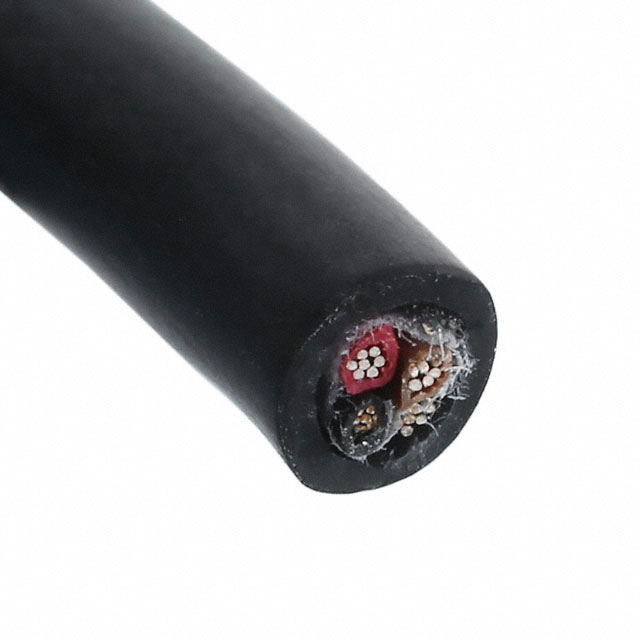

CABLE 3COND 14AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Voltage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Length | Length | Cable Type | Wire Gauge | Conductor Insulation | Conductor Insulation | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 41 | 30 | Copper Tinned | 600 V | ISO 10993 | 10.57 mm | 0.416 " | 1.397 mm | 0.055 in | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | Slate | 3 | 304.8 m | 1000 ft | Multi-Conductor | 14.5 AWG | TPE | Thermoplastic Elastomer | Foil | 125 °C | -50 °C | ||
 ALPHA WIRE | Aluminum | 100 % | 41 | 30 | Copper Tinned | 600 V | ISO 10993 | 10.57 mm | 0.416 " | 1.397 mm | 0.055 in | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | Black | 3 | Multi-Conductor | 14.5 AWG | TPE | Thermoplastic Elastomer | Foil | 125 °C | -50 °C | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | 41 | 30 | Copper Tinned | 600 V | ISO 10993 | 10.57 mm | 0.416 " | 1.397 mm | 0.055 in | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | Black | 3 | 304.8 m | 1000 ft | Multi-Conductor | 14.5 AWG | TPE | Thermoplastic Elastomer | Foil | 125 °C | -50 °C |
