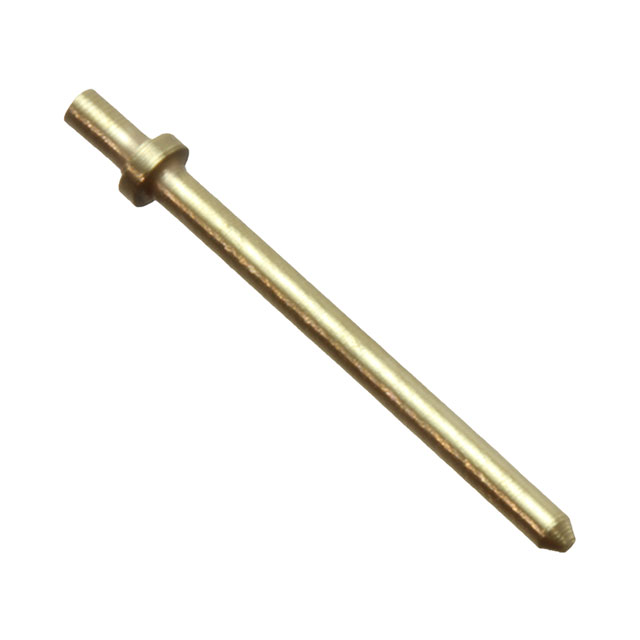

3104-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN SKT STRIP
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Terminal Style | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Thickness | Board Thickness | Mounting Type | Length - Overall [x] | Length - Overall [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Insulation | Termination | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

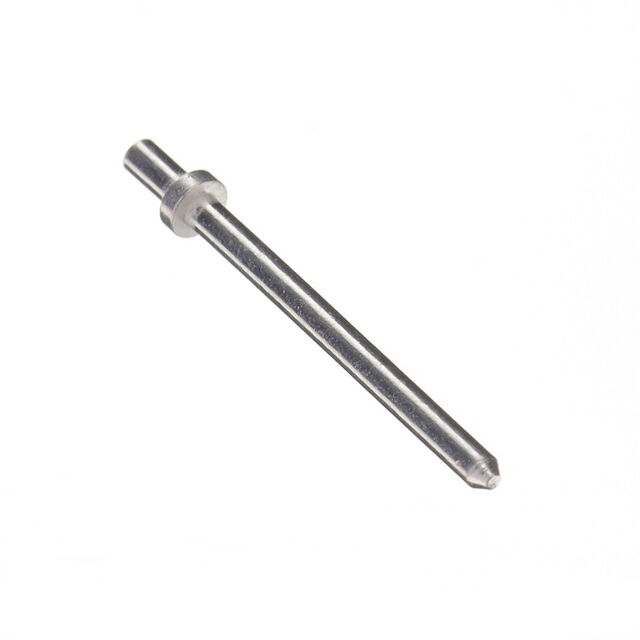

 Mill-Max Manufacturing Corp. | 1.78 mm | 0.07 in | 0.5 in | 12.7 mm | 200 Áin | 5.08 Ám | PC Pin | Single End | Tin | 0.043 in | 1.09 mm | 1.57 mm | 0.062 " | Through Hole | 15.29 mm | 0.602 in | 0.04 in | 1.02 mm | Non-Insulated | Swage | Brass | 2.08 mm | 0.082 " |

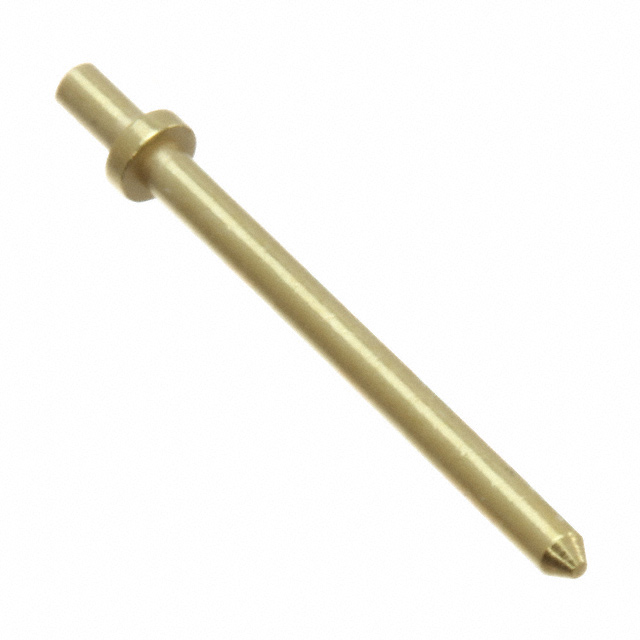

 Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | 0.5 in | 12.7 mm | 20 µin | 0.51 µm | PC Pin | Single End | Gold | 0.043 in | 1.09 mm | 1.57 mm | 0.062 " | Through Hole | 15.29 mm | 0.602 in | 0.04 in | 1.02 mm | Non-Insulated | Swage | Brass Alloy | 2.08 mm | 0.082 " |
 Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | 0.5 in | 12.7 mm | 50 µin | 1.27 µm | PC Pin | Single End | Gold | 0.043 in | 1.09 mm | 1.57 mm | 0.062 " | Through Hole | 15.29 mm | 0.602 in | 0.04 in | 1.02 mm | Non-Insulated | Swage | Brass Alloy | 2.08 mm | 0.082 " |
 Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | 0.5 in | 12.7 mm | 200 Áin | 5.08 Ám | PC Pin | Single End | Tin-Lead | 0.043 in | 1.09 mm | 1.57 mm | 0.062 " | Through Hole | 15.29 mm | 0.602 in | 0.04 in | 1.02 mm | Non-Insulated | Swage | Brass Alloy | 2.08 mm | 0.082 " |
