XLG-100 Series

Catalog

100W CONSTANT POWER MODE LED DRI

Part	Mounting Type	Type	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Efficiency	Voltage - Output	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Topology	Number of Outputs	Approval Agency	Termination Style	Voltage - Input (Max) [Max]

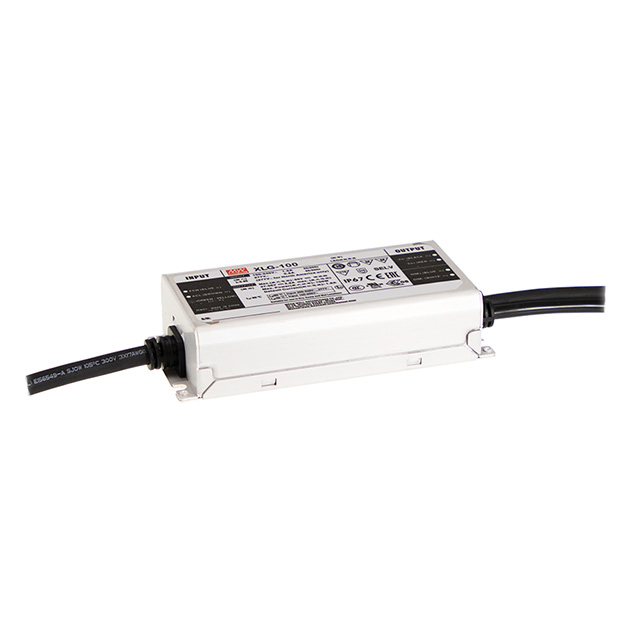

MEAN WELL USA Inc. XLG-100-12-A	Chassis Mount	Constant Current	IP67	2.48 in	63 mm	125 mm	1.26 "	32 mm	4.92 in	4.2 kV	90 °C	-40 C	OCP OTP OVP SCP	96 W	92 %	12 V	8 A	100 VAC	AC DC Converter	1	CB CCC CE cURus EAC ENEC RCM	Wire Leads	305 VAC
